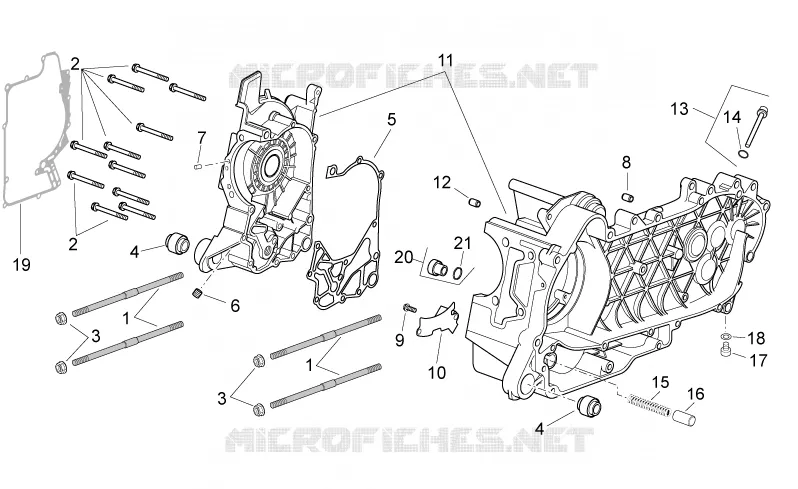

Crankcase FOR Atlantic FROM 2011

Crankcase

1

Stud bolt

877285

Not Available

2

screw M6x60

432142

$0,19 Unit Price incl. VAT

3

Nut M8x1,25

411296

$0,50 Unit Price incl. VAT

4

Silent-block

486081

$6,73 Unit Price incl. VAT

5

Gasket

875111

$3,34 Unit Price incl. VAT

6

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

7

Nozzle

484034

$6,44 Unit Price incl. VAT

8

Pin 6,5x9,5x15

239388

Not Available

9

Screw M5x10

018575

$2,95 Unit Price incl. VAT

10

Upper oil bulkhead

485047

$0,48 Unit Price incl. VAT

11

Crankcase assembly Cat.2

8786935002

Not Available

11

Crankcase assembly Cat.1

8786935001

Not Available

12

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

13

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

14

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

15

Spring

485655

$1,26 Unit Price incl. VAT

16

Oil pressure valve

829661

$6,44 Unit Price incl. VAT

17

Hex socket screw M8x12

269755

$0,34 Unit Price incl. VAT

18

Washer 8.2x12x1

485703

$0,16 Unit Price incl. VAT

19

Flywheel housing cover gasket

840504

$2,91 Unit Price incl. VAT

20

Filter door insert

845861

$3,82 Unit Price incl. VAT

21

Gasket

431065

$0,42 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
