1
Engine displacement
50
2
Model
MOJITO
3
Year
2004
4
Trim
Mojito Custom 2T (engine Piaggio)
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Rear body III
by
Carburettor cpl.
Oil pump
1
2
3
4
5
6
6
7
8
9
10
11
12
13
13
13
1
PASSE CABLES
287021
$2,08 Unit Price incl. VAT
2
ECROU S02010600
020106
$0,08 Unit Price incl. VAT
3
Oil pump gear
289191
$4,29 Unit Price incl. VAT
4
COURROIE DENTEE
286162
$4,38 Unit Price incl. VAT
5
PLAQUE
286163
$2,19 Unit Price incl. VAT
6
VIS
015856
$0,16 Unit Price incl. VAT
7
VIS
015585
$0,08 Unit Price incl. VAT
8
POMPE HUILE
82652R
$39,27 Unit Price incl. VAT
8
Oil pump assy.
82632R
Not Available
9
VIS REGLAGE
146197
$0,81 Unit Price incl. VAT
10
TUBE
CM101509
$13,47 Unit Price incl. VAT
11
TUYAU
CM101605
$10,35 Unit Price incl. VAT
12
RONDELLE
287073
$0,17 Unit Price incl. VAT
13
RONDELLE S00697500
006975
$0,17 Unit Price incl. VAT

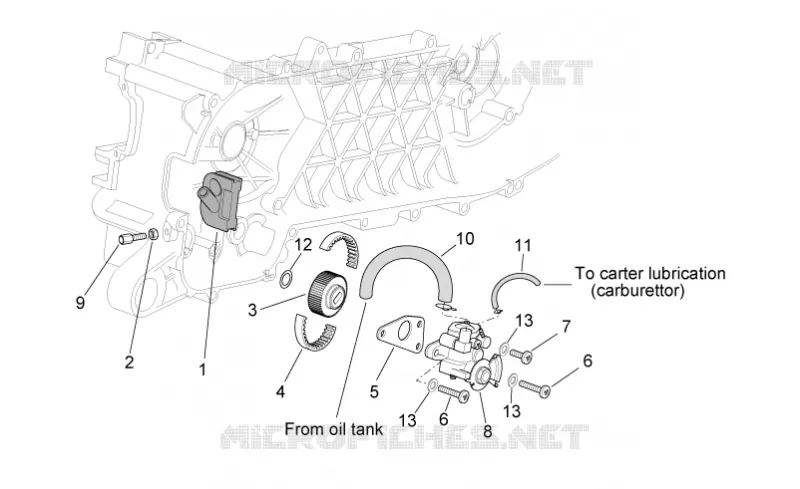

Find the detailed Oil pump APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
