1
Engine displacement
650
2
Model
MOTO-65
3
Year
1998
4
Trim
MOTO' 6.5
5
Parts Catalog

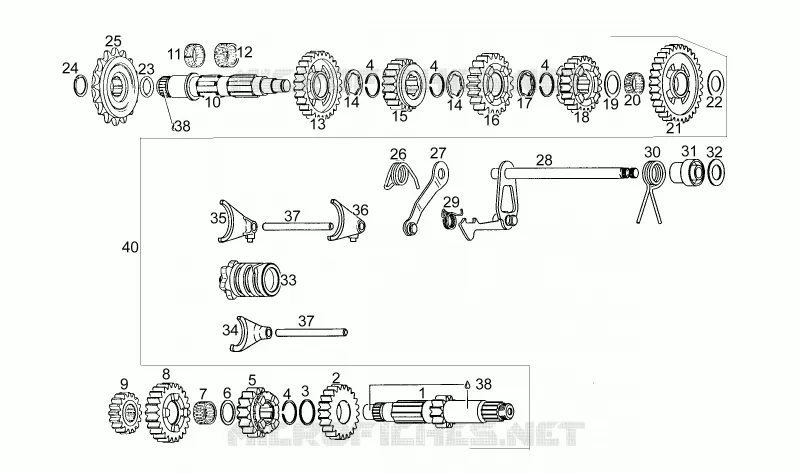

Gear box
6
Parts Diagram
Parts Catalog
Special tools
by
Oil pump
Gear box
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
38
40
1
Primary gear shaft Z=12
AP0220232
Not Available
2
4th pinion gear Z=22
AP0234712
Not Available
3
Thrust washer 25,6/28,5/1,5
AP0227825
Not Available
4
Circlip d25
AP0445300
Not Available
5
3rd pinion gear Z=16
AP0634330
Not Available
6
Thrust washer 21,2/27,5/1
AP0227445
Not Available
7
Roller cage 21x25x13
AP0232805
Not Available
8
5th pinion gear Z=24
AP0234720
Not Available
9
2nd pinion gear Z=16
AP0234670
Not Available
10
Driven shaft
AP0220222
Not Available
10
Driven shaft
AP0220220
Not Available
11
Roller cage 22x26x10
AP0232520
Not Available
12
Roller cage 22x26x13
AP0232530
Not Available
13
2nd wheel gear Z=28
AP0634300
Not Available
14
Thrust washer
AP0627051
Not Available
15
5th wheel gear Z=21
AP0634340
Not Available
16
3rd wheel gear Z=21
AP0234700
Not Available
17
Ring
AP0627061
Not Available
18
4th wheel gear Z=23
AP0634350
Not Available
19
Thrust washer 21,2/30/1
AP0244100
$4,82 Unit Price incl. VAT
20
Roller cage 21x25x10
AP0232742
Not Available
21
1st wheel gear Z=33
AP0634290
Not Available
22
Thrust washer 17,2/30/1
AP0227430
$4,82 Unit Price incl. VAT
23
O-ring 18x3,5
AP0430460
$3,65 Unit Price incl. VAT
24
Circlip AV 20
AP0245650
Not Available
25
Pinion Z=16
AP0236336
Not Available
26
Index spring
AP0239095
Not Available
27
Index assy. lever
AP0248345
Not Available
28
Gear shaft+ratchet gear cpl.
AP0237927
Not Available
29
Spring
AP0239075
Not Available
30
Spring
AP0239082
Not Available
31
Spacer
AP0247900
Not Available
32
Thrust washer 17,2/30/1
AP0227430
$4,82 Unit Price incl. VAT
33
Shift cam
AP0258275
Not Available
34
Fork 4-5 speed
AP0258034
Not Available
35
Fork 2 speed
AP0258023
Not Available
36
Fork 1-3 speed
AP0258013
Not Available
37
Fork shaft
AP0258782
Not Available
38
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
40
Gear box cpl.5 speed
AP0281192
Not Available

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
