Frame
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
Frame, aluminium
AP8135106
Not Available
2
Oil unload plug
AP8122960
Not Available
3
Copper washer
AP8122961
Not Available
4
Clip M5
AP8102375
$0,69 Unit Price incl. VAT
5
Aluminium painted cradle
AP8135105
Not Available
6
Footrest rubber
AP8120289
Not Available
7
Rear footrests, pair
AP8101921
Not Available
8
RH footrest support
AP8132588
Not Available
9
T bush *
AP8221056
$3,65 Unit Price incl. VAT
10
LH support
AP8132590
Not Available
11
RH foot rest, black
AP8101966
Not Available
12
LH foot rest, black
AP8101967
Not Available
13
RH foot rest support
AP8132794
Not Available
14
LH footrest support
AP8132792
Not Available
15
Spacer
AP8120307
Not Available
16
Footrest return spring
AP8121686
Not Available
17
Footrest return spring
AP8121685
Not Available
18
Lateral stand
AP8135108
Not Available
19
Rubber stand
AP8120502
Not Available
20
Lateral stand spring
AP8221197
$4,96 Unit Price incl. VAT
21
Special screw M10x18*
AP8105103
$6,60 Unit Price incl. VAT
22
Spacer
AP8221017
$3,65 Unit Price incl. VAT
23
Cable-guide
AP8120708
$5,38 Unit Price incl. VAT
24
Luggage rack, black
AP8232144
Not Available
25
RH lugg.rack support, grey
AP8131231
Not Available
26
LH lugg.rack support, grey
AP8131232
Not Available
27
Oil level rod
AP8101961
Not Available
28
O-ring 4087
AP8120280
$3,65 Unit Price incl. VAT
29
Chain tensioner roller
AP8101704
Not Available
30
Spacer *
AP8101108
$3,65 Unit Price incl. VAT
31
Front bow
AP8135131
Not Available
32
Support clamp
AP8132904
Not Available
33
Rubber spacer
AP8220150
$1,42 Unit Price incl. VAT
34
Rubber spacer *
AP8201124
$5,38 Unit Price incl. VAT
35
Hex socket screw M10X165
AP8152025
Not Available
36
Oil cooler
AP8101535
Not Available
37
Bushing 5,3x8x7,1
AP8221036
$0,27 Unit Price incl. VAT
38
Footrest pin
AP8121681
Not Available
39
Split pin
AP8101928
$0,08 Unit Price incl. VAT
40
Silent-block
AP8120595
Not Available
41
Bush
AP8121682
Not Available
42
Rubber spacer
AP8120596
Not Available
43
Spacer *
AP8121092
$3,65 Unit Price incl. VAT
44
Rear handle, silver
AP8131230
Not Available
45
plate
AP8134169
Not Available
46
Bottom lugg.rack support
AP8130986
Not Available
47
LH handle, silver
AP8131234
Not Available
48
RH handle, silver
AP8131233
Not Available
49
Rubber spacer
AP8120311
$5,38 Unit Price incl. VAT

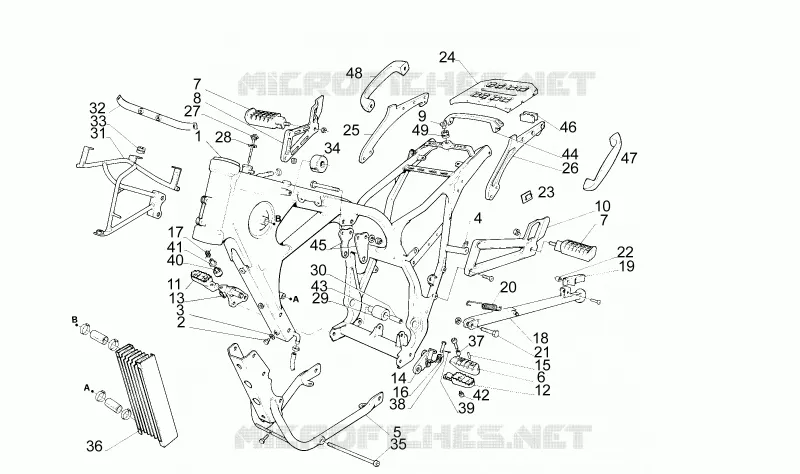

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

PEGASO 600 1990
View

PEGASO 600 1991
View
