Parts Catalog
Engine
6
Parts Diagram
Parts Catalog
Plate set and decal
by
Crankcase
Engine
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
1
Engine 122 11KW 96
AP8106398
Not Available
1
Engine 122 STRADA -CH-
AP8106549
Not Available
1
Engine 122 SPORT PRO 95
AP8106349
Not Available
1
Engine 122 STRADA -SGP-
AP8106558
Not Available
1
Engine 122 11kw 80km/h -D-
AP8106436
Not Available
1
Engine 122 STRADA 95
AP8106304
Not Available
1
Engine 122 STRADA -D-
AP8106548
Not Available
2
Carburettor phbL 24
AP8106435
Not Available
2
Carburettor VHSB 34 Ld
AP8106314
Not Available
2
Carburettor phbH 28-Bd
AP8106397
Not Available
2
Carburettor phbH 28-Rd
AP8106194
Not Available
2
Carburettor phbh 28-bd
AP8106550
Not Available
3
Gear lever
AP8106013
$41,54 Unit Price incl. VAT
4
Rubber spacer
AP8220189
$8,16 Unit Price incl. VAT
5
Spacer *
AP8121147
$3,65 Unit Price incl. VAT
6
Brake lever pin
AP8121284
$10,76 Unit Price incl. VAT
7
Gearbox linkage rod
AP8121163
Not Available
8
Gearbox connecting rod
AP8135726
Not Available
9
RH ball joint M6
AP8210007
$5,13 Unit Price incl. VAT
10
Left ball joint M6
AP8110053
$5,13 Unit Price incl. VAT
11
Sprocket cover, grey
AP8106315
Not Available
12
Air filter
AP8102080
Not Available
13
Intake hose
AP8120810
$8,91 Unit Price incl. VAT
13
Intake hose
AP8120783
$4,60 Unit Price incl. VAT
14
Intake hose
AP8120748
$8,91 Unit Price incl. VAT
15
Filter housing base
AP8131626
Not Available
16
Filter guard
AP8131121
$11,69 Unit Price incl. VAT
17
Filter housing cover
AP8131470
Not Available
17
Filter housing cover
AP8138686
Not Available
18
Cable-guide
AP8120708
$5,38 Unit Price incl. VAT
19
Rubber spacer
AP8120405
$5,38 Unit Price incl. VAT
20
Spacer *
AP8121058
$3,65 Unit Price incl. VAT
21
Silent-block
AP8120910
Not Available
22
Silencer
AP8119375
Not Available
22
Silencer 80KM/H-D-
AP8119434
Not Available
22
Silencer
AP8119417
Not Available
22
Silencer -A-
AP8119468
Not Available
22
Silencer -D-
AP8119467
Not Available
23
Silencer
AP8119418
Not Available
23
Silencer
AP8119383
Not Available
24
Coil pull spring *
AP8121091
Not Available
25
Exhaust pipe support
AP8135289
$13,53 Unit Price incl. VAT
26
Washer 22x30*
AP8101284
Not Available
27
Silent-block *
AP8101285
Not Available
28
Silencer gasket
AP8120812
$7,23 Unit Price incl. VAT
29
Silencer clip
AP8102432
$12,45 Unit Price incl. VAT
30
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
31
Silencer plate
AP8134262
Not Available
32
Carburettor adjuster
AP8106316
Not Available
33
Hex socket screw M8x50
AP8150277
$0,42 Unit Price incl. VAT
34
Exhaust pipe prot., chr.black
AP8232524
Not Available
35
Exaust pipe support
AP8135492
Not Available
36
Cat.exhaust pipe -CH-
AP8119469
Not Available
37
Silencer sport-pro
AP8119387
Not Available
37
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
37
Rear stand bush
AP8121890
$3,65 Unit Price incl. VAT
37
Carburettor protection
AP8120852
Not Available
37
Black hose 98x2*
AP8120422
$3,70 Unit Price incl. VAT
37
Exhaust flange cpl.
AP8119402
Not Available
37
Screw M6x55
AP8150337
Not Available
37
Carburettor phbH 28-Bd
AP8106520
Not Available
37
Clearance washer
AP8121825
Not Available
37
Intake manifold
AP8106346
Not Available

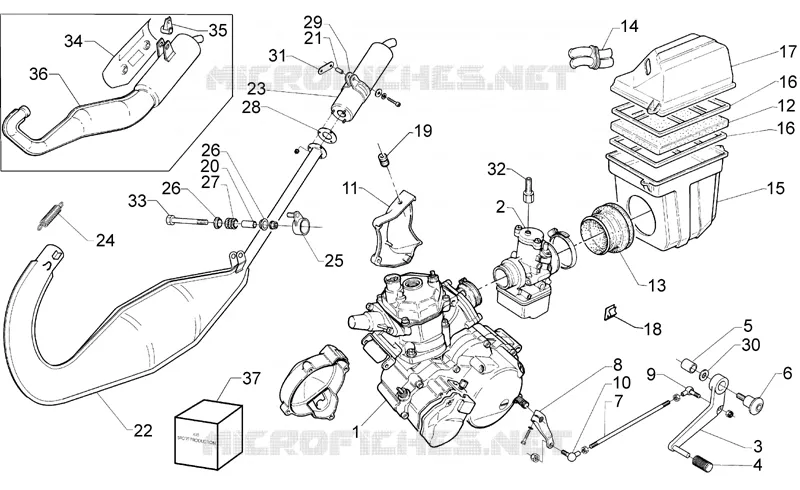

Find the detailed Engine APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
