by
Rear brake caliper
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
1
Brake supp. plate pin
898486
Not Available
2
Rear brake disc
893137
Not Available
3
Sensor ABS
859792
Not Available
4
Rondelle
AP8113004
$0,34 Unit Price incl. VAT
5
Oil pipe screw
852702
Not Available
6
Tuyau frein arrière
858902
$44,84 Unit Price incl. VAT
7
Rear brake caliper
860880
Not Available
8
Plaquettes-paire
893969
$108,92 Unit Price incl. VAT
9
Axe +goupille pince;
AP8113752
$29,21 Unit Price incl. VAT
10
Purge air;
AP8113753
$15,37 Unit Price incl. VAT
11
Capuchon reniflard (20 pcs)
AP8113230
$14,66 Unit Price incl. VAT
12
Screw w/ flange M8x18
894505
Not Available
13
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
14
Protection tuyau frein arrière
858791
$3,16 Unit Price incl. VAT
15
Support
896896
$67,69 Unit Price incl. VAT
16
"Douille en ""T"""
AP8221349
$2,95 Unit Price incl. VAT
17
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
18
Vis bride
AP8152286
$0,25 Unit Price incl. VAT

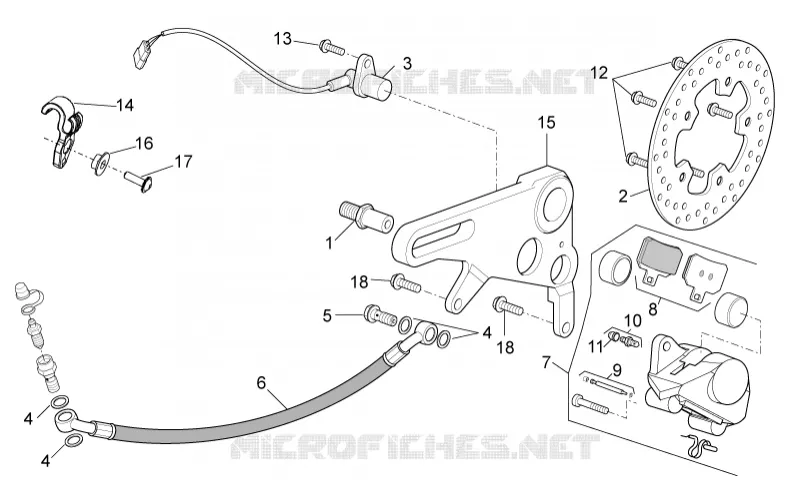

Find the detailed Rear brake caliper APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
