Fuel vapour recover system for APRILIA Shiver from 2009

Fuel vapour recover system

1

Filtre à charbon

AP8102678

$83,70 Unit Price incl. VAT

2

Fuel pipe 8x13

AP8120905

Not Available

3

PLAQUETTE

254485

$0,34 Unit Price incl. VAT

4

"Douille en ""T"" *"

AP8221023

$0,93 Unit Price incl. VAT

5

pipe SAE 30 d.11,11x4,8

856062

$19,10 Unit Price incl. VAT

6

TUYAU

856063

$41,29 Unit Price incl. VAT

7

Collier

AP8102719

$26,74 Unit Price incl. VAT

8

Vis bride M6X16

AP8152278

$1,77 Unit Price incl. VAT

9

Raccord

AP8144276

$4,32 Unit Price incl. VAT

10

Soupape pression

AP8104614

$75,62 Unit Price incl. VAT

11

Collier clic

AP8102764

$1,86 Unit Price incl. VAT

12

Collier clic

AP8120446

$0,75 Unit Price incl. VAT

13

Crochet bouchon

AP8102815

$5,38 Unit Price incl. VAT

14

Vis

AP8152055

$3,65 Unit Price incl. VAT

15

Collier

AP8102688

$31,97 Unit Price incl. VAT

16

Support

858576

$3,96 Unit Price incl. VAT

17

Vis bride

AP8152282

$0,51 Unit Price incl. VAT

18

Vis bride

AP8152280

$0,25 Unit Price incl. VAT

19

Collier serr. Tube

AP8102520

$0,26 Unit Price incl. VAT

20

Caoutchouc support relais

AP8220546

$4,62 Unit Price incl. VAT

21

Black hose D12*

AP8102151

Not Available

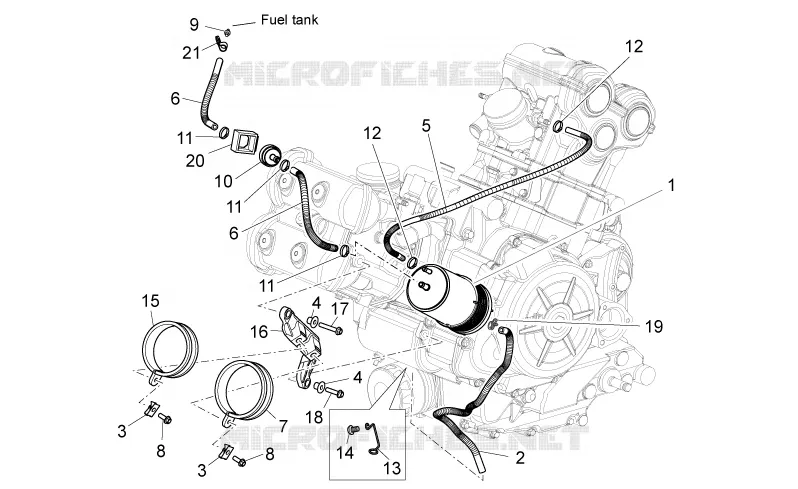

Find the detailed Fuel vapour recover system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
