Front fork for APRILIA Shiver from 2009

Front fork

1

RH hub cpl.

859982

Not Available

2

LH hub cpl.

859983

$395,94 Unit Price incl. VAT

3

Sleeve

856029

Not Available

4

RESSORT

856030

$14,04 Unit Price incl. VAT

5

Tuyau

856549

$7,90 Unit Price incl. VAT

6

Elém.pompage cpl

856245

$99,46 Unit Price incl. VAT

7

Elém.pompage cpl

856032

$123,06 Unit Price incl. VAT

8

Sleeve plug cpl.

856033

$23,70 Unit Price incl. VAT

9

O-ring

856034

Not Available

10

Rubber ring

856035

$2,08 Unit Price incl. VAT

11

ECROU

856036

$0,29 Unit Price incl. VAT

12

Stop ring

856037

$1,82 Unit Price incl. VAT

13

Hub+RH fork leg

856038

$232,75 Unit Price incl. VAT

14

Hub+LH fork leg

856039

Not Available

15

Dust cover

856040

Not Available

16

Circlip

856041

Not Available

17

JOINT

856042

$5,58 Unit Price incl. VAT

18

CIRCLIPS

856043

$0,86 Unit Price incl. VAT

19

Spring guide bush

856044

Not Available

20

Bush

856045

Not Available

21

Rondelle

856046

$0,43 Unit Price incl. VAT

22

VIS

856047

$0,68 Unit Price incl. VAT

23

Vis bride

AP8152290

$3,65 Unit Price incl. VAT

24

CUVETTE

856317

$4,75 Unit Price incl. VAT

25

Catadioptre, ambre

GU05781630

$8,91 Unit Price incl. VAT

26

Vis bride

AP8152273

$0,16 Unit Price incl. VAT

27

Vis

AP8150298

$3,65 Unit Price incl. VAT

28

Plaquette

859777

$1,01 Unit Price incl. VAT

29

Plaque AV

856557

$2,92 Unit Price incl. VAT

30

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

31

Sensor ABS

859792

Not Available

32

Vis

AP8201749

$0,16 Unit Price incl. VAT

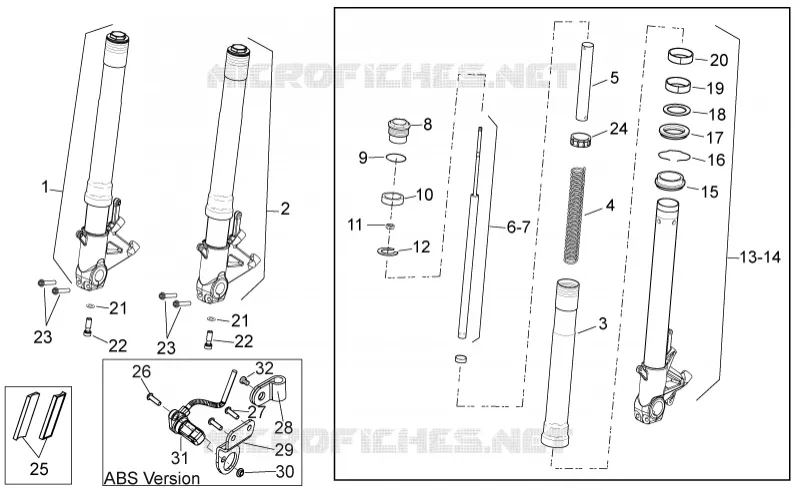

Find the detailed Front fork APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
