Rear brake system for APRILIA Shiver from 2009

Rear brake system

1

Brake m.cyl,. w/ reservoir

852023

Not Available

1

Brake m.cyl,. w/ reservoir

859784

Not Available

2

Rear brake caliper

860111

Not Available

2

Rear brake caliper

851725

Not Available

3

PEDALE FREIN

851615

$92,96 Unit Price incl. VAT

4

Rear brake lever pin

AP8121223

Not Available

5

Joint torique

AP8144007

$0,81 Unit Price incl. VAT

6

Rondelle

AP8150020

$0,08 Unit Price incl. VAT

7

Tige manette frein

AP8121221

$17,15 Unit Price incl. VAT

8

Caoutchouc pour levier

AP8120912

$1,42 Unit Price incl. VAT

9

Bague seeger

AP8150462

$0,67 Unit Price incl. VAT

10

Joint torique

AP8120178

$0,08 Unit Price incl. VAT

11

Ressort man.ferin ar.;

AP8121927

$2,36 Unit Price incl. VAT

12

Microinterrupteur

AP8112996

$30,28 Unit Price incl. VAT

13

Fourchette

AP8101968

$5,09 Unit Price incl. VAT

14

Ecrou

AP8150026

$0,16 Unit Price incl. VAT

15

Clip fourc.b.vitesses

AP8201301

$2,24 Unit Price incl. VAT

16

Vis

AP8150137

$3,70 Unit Price incl. VAT

17

Vis bride M6X16

AP8152278

$1,77 Unit Price incl. VAT

18

Ecrou autobloqu.

AP8152299

$0,34 Unit Price incl. VAT

19

Vis bride

AP8152279

$0,51 Unit Price incl. VAT

20

TUYAU

852494

$24,57 Unit Price incl. VAT

21

Brake supp. plate pin

AP8121407

Not Available

22

Vis tuyau huile

AP8113003

$3,65 Unit Price incl. VAT

23

Rondelle

AP8113004

$0,34 Unit Price incl. VAT

24

Sensor ABS

859792

Not Available

24

PROTECTION

854893

$3,73 Unit Price incl. VAT

25

Vis bride

AP8152339

$3,65 Unit Price incl. VAT

25

Vis bride

AP8152273

$0,16 Unit Price incl. VAT

26

Rear pads pair

858200

Not Available

27

KIT PIVOT

856052

$4,82 Unit Price incl. VAT

28

Purge air

AP8213574

$7,69 Unit Price incl. VAT

29

RESERVOIR HUILE

856053

$24,83 Unit Price incl. VAT

30

Brake disc

859714

Not Available

30

Rear brake disc D.240

AP8133789

Not Available

31

Vis bride

AP8152286

$0,25 Unit Price incl. VAT

32

PIVOT

GU56777300

$37,35 Unit Price incl. VAT

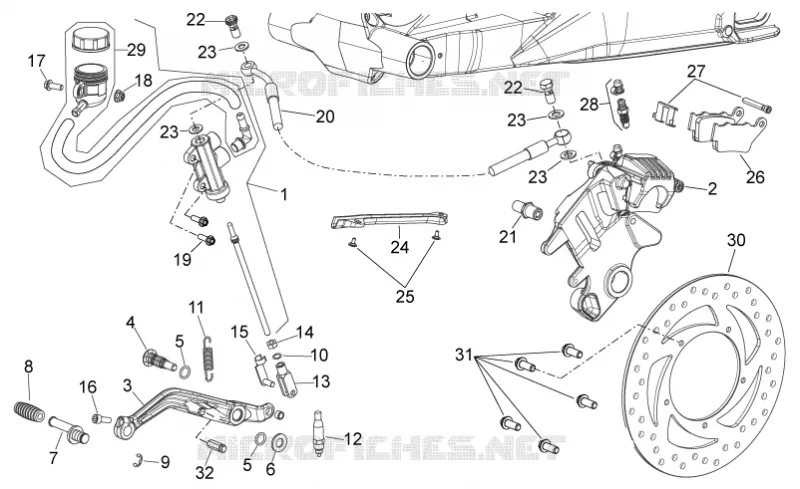

Find the detailed Rear brake system APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
