1
Engine displacement
50
2
Model
SR
3
Year
2007
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog

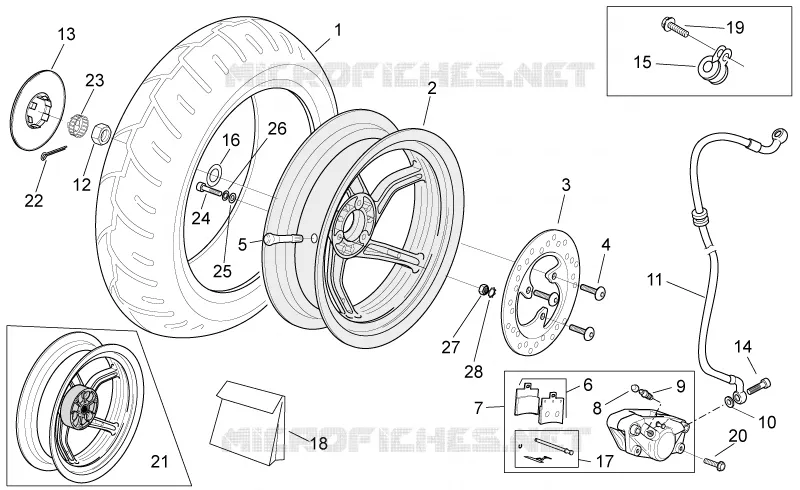

Rear wheel - disc brake
6
Parts Diagram
Parts Catalog
Cylinder head/Carburettor
by
Fuel tank I
Rear wheel - disc brake
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Front tyre
AP8209085
$152,72 Unit Price incl. VAT
2
Rear wheel, blue
AP8208906
Not Available
2
Rear wheel, silver
AP8128218
$178,60 Unit Price incl. VAT
2
Rear wheel, blue
AP8208923
$138,48 Unit Price incl. VAT
3
Rear brake disc
AP8133601
$55,35 Unit Price incl. VAT
4
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
4
Special TE screw M8x25
AP8152504
$3,65 Unit Price incl. VAT
5
Tubeless tyre valve
AP8201546
$5,38 Unit Price incl. VAT
6
Pads pair
AP8113869
$43,88 Unit Price incl. VAT
6
Pads pair
AP8213577
$66,15 Unit Price incl. VAT
7
Rear brake caliper, gold D30
AP8213557
$169,68 Unit Price incl. VAT
7
Rear brake caliper, gold D30
AP8213522
Not Available
8
Bleed valve cap
AP8213575
$5,38 Unit Price incl. VAT
8
Bleed valve cap
AP8113005
$5,38 Unit Price incl. VAT
9
Air bleed valve
AP8113006
$24,59 Unit Price incl. VAT
9
Air bleed valve
AP8213574
$7,69 Unit Price incl. VAT
10
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
11
Rear brake hose
AP8213548
$67,48 Unit Price incl. VAT
12
Nut M16x13
563728
$1,42 Unit Price incl. VAT
12
SELF-BRAKING FLANGE NUT
1C002565
$13,20 Unit Price incl. VAT
13
Rear wheel plug, blue
AP8208907
$5,38 Unit Price incl. VAT
14
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
15
Brake hose hanger
AP8134167
$1,49 Unit Price incl. VAT
16
Ring
159347
$0,48 Unit Price incl. VAT
17
Pin+Brake spring
AP8213578
$19,85 Unit Price incl. VAT
17
Pin+Brake spring
AP8113871
$11,77 Unit Price incl. VAT
18
Brake caliper rev. kit
AP8213457
Not Available
18
Brake caliper rev. kit
AP8213579
$47,65 Unit Price incl. VAT
19
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
20
Screw w/ flange M8x30
AP8152288
$1,70 Unit Price incl. VAT
21
Rear wheel, blue
AP8208942
$178,60 Unit Price incl. VAT
21
Rear wheel, black
AP8208949
$178,60 Unit Price incl. VAT
22
Split pin
012789
$0,16 Unit Price incl. VAT
23
Nut hold cap
194423
$0,48 Unit Price incl. VAT
24
Hex socket screw
AP8150086
$3,65 Unit Price incl. VAT
25
Washer 10,5x21x2*
AP8150020
$0,08 Unit Price incl. VAT
26
Curved spring washer *
AP8150292
$0,34 Unit Price incl. VAT
27
Nut M10x8,3
AP8225319
$12,36 Unit Price incl. VAT
28
Washer
AP8225322
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
