Engine displacement
50
2
Model
SR
3
Year
2004
4
Trim
SR H2O NEW (IE+Carb.)
5
Parts Catalog
Crank-case
6

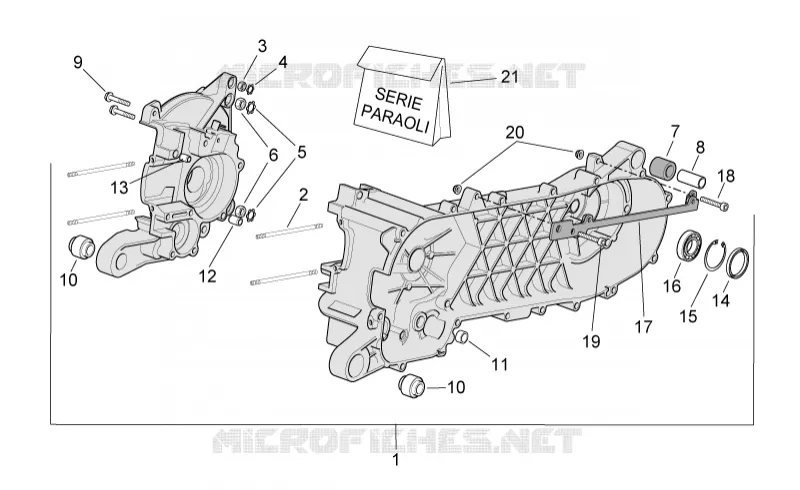

Parts Diagram
Parts Catalog
Central stand - Connecting rod
by
Fork II
Crank-case
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
1
Crankcase assy
CM1273235
$1 621,51 Unit Price incl. VAT
1
Crankcase assy
8294235
$337,13 Unit Price incl. VAT
2
Stud bolt
239382
Not Available
3
Nut
020006
$0,34 Unit Price incl. VAT
4
Stop ring
829376
$0,19 Unit Price incl. VAT
5
Stop ring
829377
$0,19 Unit Price incl. VAT
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
Shock absorber connection silent block
267823
$4,92 Unit Price incl. VAT
8
Spacer
266625
$3,70 Unit Price incl. VAT
9
screw
414835
$0,15 Unit Price incl. VAT
10
Silent-block
266773
$3,63 Unit Price incl. VAT
10
Silent-block
486081
$6,73 Unit Price incl. VAT
11
Gasket ring
4352035
$5,09 Unit Price incl. VAT
12
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
13
Pin 6,5x9,5x15
239388
Not Available
14
Gasket ring
478498
$8,12 Unit Price incl. VAT
15
Circlip
006647
$1,10 Unit Price incl. VAT
16
Bearing 20x47x14
434735
$7,12 Unit Price incl. VAT
17
Air box fixing support
AP8234213
$6,30 Unit Price incl. VAT
18
Hex socket screw M6x30
AP8150220
$0,17 Unit Price incl. VAT
19
Hex socket screw M6x40
AP8152003
$3,70 Unit Price incl. VAT
20
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
21
Oil seals - set
498337
$57,28 Unit Price incl. VAT
21
Oil seals - set
497339
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
