Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

Racing 2003 fuel pump

REAR BODY - REAR FAIRING FOR APRILIA RSV 1000 TUONO 2005

Rear brake caliper

Item numbers

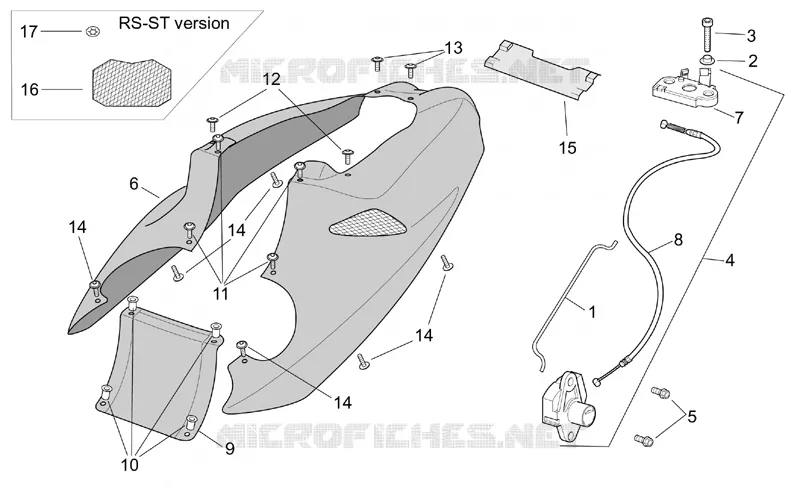

Rear body - Rear fairing Aprilia APRILIA-MOTORCYCLES 1000 TUONO 2005 RSV 1000 Tuono
1
2
3
4
5
6
6
6
6
6
6
6
6
7
8
9
9
9
10
11
12
13
13
14
14
14
14
15
15
15
15
15
16
17
1
FUEL TANK SUPPORT ROD

AP8134396  

Unit Price

2
FRONT MUDGUARD COMPASS
BUSH

AP8221129  

Unit Price

3
HEX SOCKET SCREW M6X35

AP8150285  

Unit Price

4
SADDLE LOCK CPL.

AP8102911  

Unit Price

5
SCREW W/ FLANGE
SCREW

AP8152278  

598839

Unit Price

6
AP8168077
REAR FAIRING, CARB.

AP8168077  

Contact
6
AP8168459
REAR FAIRING

AP8168459  

Contact
6
AP8168514
REAR FAIRING

AP8168514  

Contact
6
REAR FAIRING, CARB.

AP8168807  

Contact
6
AP8178249
REAR FAIRING

AP8178249  

Contact
6
AP8178255
REAR FAIRING

AP8178255  

Contact
6
AP8178259
REAR FAIRING

AP8178259  

Contact
6
REAR FAIRING, CARB.

AP8179015  

Contact
7
PASS.SADDLE CONNECTING PLATE

AP8102913  

Unit Price

8
LOCK CABLE
SADDLE RELEASE CABLE

AP8102914  

Unit Price

9
AP8168093
FRONT FAIRING, CARB.

AP8168093  

Contact
9
FRONT FAIRING, CARB.

AP8168911  

Contact
9
FRONT FAIRING, CARB.

AP8179035  

Unit Price

10
ELASTIC RIVET M4
RUBBER W/ INSERT M4

AP8144564  

Unit Price

11
SCREW M4X10

AP8152415  

Contact
12
SCREW
SCREW W/ FLANGE M6X20

AP8152279  

Unit Price

13
HEXAGON COCKET SCREWS M5X12
SCREW W/ FLANGE M5X12

AP8152302  

Contact
13
SCREW M5X10
SCREW

AP8152416  

Unit Price

14
HEXAGON COCKET SCREWS M5X12
SCREW W/ FLANGE M5X12

AP8152302  

Contact
15
AP8168234
REAR FAIRING

AP8168234  

Contact
15
AP8168602
REAR FAIRING

AP8168602  

Contact
15
AP8178250
REAR FAIRING

AP8178250  

Contact
15
AP8178256
REAR FAIRING

AP8178256  

Contact
15
AP8178260
REAR FAIRING

AP8178260  

Contact
16
AP8168499
AP8168499
AIR INTAKE GRID

AP8168499  

Contact
17
PUSH ON FASTENERS FOR 5MM SHAFT
WASHER FOR SHAFTS D5

AP8150450  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Aprilia. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Aprilia, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
