Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

Central body I

TRANSMISSION FOR APRILIA SPORT CITY STREET 4T 4V E3 2012

Undersaddle

Item numbers

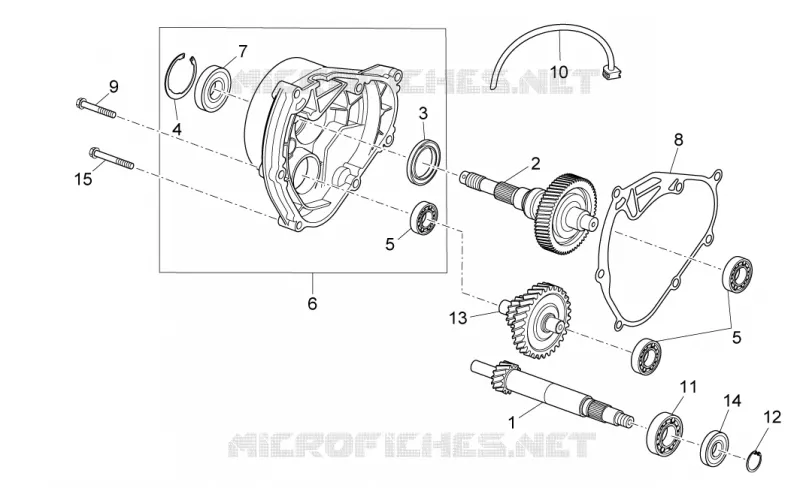

Transmission Aprilia APRILIA-SCOOTER 125 SPORT-CITY 2012 Sport City Street 4T 4V E3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
DRIVEN PULLEY SHAFT
DRIVEN PULLEY SHAFT Z=14

8738755  

Unit Price

2
WHEEL SHAFT WITH I.P.
WHEEL SHAFT WITH I.P.

B016880  

B0168805

Unit Price

3
GASKET RING 38X50X7
SEAL RING 38X50X7

873351  

83082R

Unit Price

4
CIRCLIP

829206  

Unit Price

5
RADIAL BALL BEARING 15X42X13
DEEP GROOVE BALL BEARING 15.42.13

485912  

83018R

Unit Price

6
GEAR BOX WITH I.P.

8481875  

1A0198835

Unit Price

7
BEARING 30.55.13
GEAR WHEEL BEARING

83034R  

1A005376R

Unit Price

8
PACKING
GASKET

847931  

Unit Price

9
FLANGED HEXAGONAL SCREW M8X45
SCREW W/ FLANGE M8X45

B016805  

Unit Price

10
REDUCTION UNIT BREATHER PIPE ASSEMBLY
BREATHER TUBE

CM162201  

CM162202

Unit Price

11
DEEP GROOVE BALL BEARING
RADIAL BALL BEARING

83023R  

Contact
12
CIRCLIP 25X26, 9X1, 2
SPRING RING (12X26, 9X1, 2)

000674  

B015959

Unit Price

13
TRANSMISSION SHAFT
COUNTERSHAFT B125

830598  

8305985

Unit Price

14
SEAL RING
GASKET RING 20-32-7

82878R  

Unit Price

15
FLANGED HEXAGONAL SCREW M8X40
SCREW W/ FLANGE M8X40

B016806  

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Aprilia. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the Transmission of your Aprilia Sport City Street 4T 4V E3 of SPORT-CITY. Let us know if you have any questions.
