1
Engine displacement
50
2
Model
SX
3
Year
2019
4
Trim
SX 50 Low Seat Euro 4
5
Parts Catalog
CRANKCASES I
6
Parts Diagram
Parts Catalog
SPEEDOMETER
by
AIR BOX

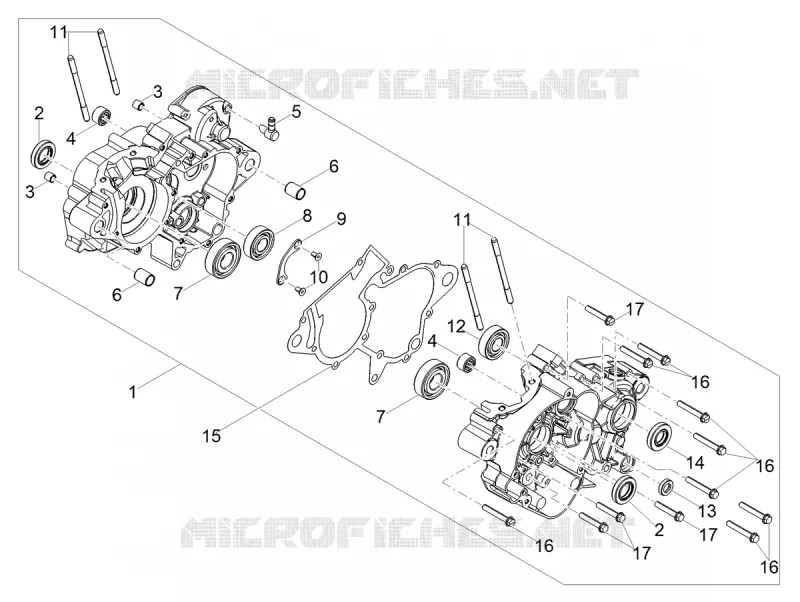

CRANKCASES I
1
2
2
3
3
4
4
5
6
6
7
7
8
9
10
11
11
12
13
14
15
16
16
16
16
17
17
17
1
Carter, pair
CM2865015
$406,59 Unit Price incl. VAT
2
Oil seal
847020
$4,18 Unit Price incl. VAT
3
Pin
847241
$4,62 Unit Price incl. VAT
4
Roller cage
847211
$2,85 Unit Price incl. VAT
5
Joint
847024
$1,86 Unit Price incl. VAT
6
Ring nut
847023
$0,77 Unit Price incl. VAT
7
Bearing
847172
$8,78 Unit Price incl. VAT
8
Bearing
847209
$4,92 Unit Price incl. VAT
9
Plate
847021
$2,13 Unit Price incl. VAT
10
M5x10 countersunk head screw
1A003116
$3,65 Unit Price incl. VAT
11
Stud bolt L=109 mm
877264
$1,71 Unit Price incl. VAT
12
Bearing
847086
Not Available
13
Oil seal 12x20
847075
$1,49 Unit Price incl. VAT
14
Oil seal
847019
$1,63 Unit Price incl. VAT
15
Crankcase gasket
1A009969
$14,18 Unit Price incl. VAT
16
Screw w/ flange M6x50
B013042
$0,48 Unit Price incl. VAT
17
TE flanged screw M6x40
1A011120
$0,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
