1
Engine displacement
50
2
Model
SX
3
Year
2019
4
Trim
SX 50 Low Seat Euro 4
5
Parts Catalog

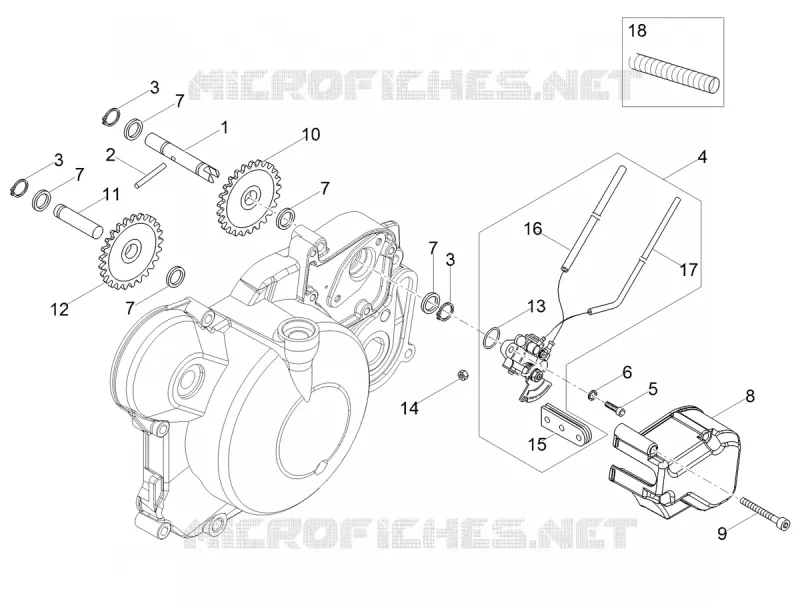

OIL PUMP
6
Parts Diagram
Parts Catalog
CYLINDER HEAD COVER
by
CYLINDER - PISTON
OIL PUMP
18
1
2
3
3
3
4
5
6
7
7
7
7
7
8
9
10
11
12
13
14
15
16
17
1
Oil pump shaft assy.
847052
$5,53 Unit Price incl. VAT
2
Pin
847184
$0,22 Unit Price incl. VAT
3
Safety washer
006408
$0,09 Unit Price incl. VAT
4
Oil pump
847055
$51,27 Unit Price incl. VAT
5
screw
847227
$3,65 Unit Price incl. VAT
6
Washer
847226
$2,25 Unit Price incl. VAT
7
Washer
847183
$0,15 Unit Price incl. VAT
8
Oil pump cover
2B004362
Not Available
9
screw
00004154000
$3,65 Unit Price incl. VAT
10
Gear Z=25
847051
$4,00 Unit Price incl. VAT
11
Shaft pin
847076
$0,67 Unit Price incl. VAT
12
Pinion Z13/24
847053
$4,00 Unit Price incl. VAT
13
Gasket
311163
$1,49 Unit Price incl. VAT
14
Nut M6x0,75
866553
$7,77 Unit Price incl. VAT
15
Fairlead cpl.
876733
$2,00 Unit Price incl. VAT
16
Oil inlet pipe
CM101509
$13,47 Unit Price incl. VAT
17
Oil outlet pipe
CM101605
$10,35 Unit Price incl. VAT
18
Spring
00H03701511
$0,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
