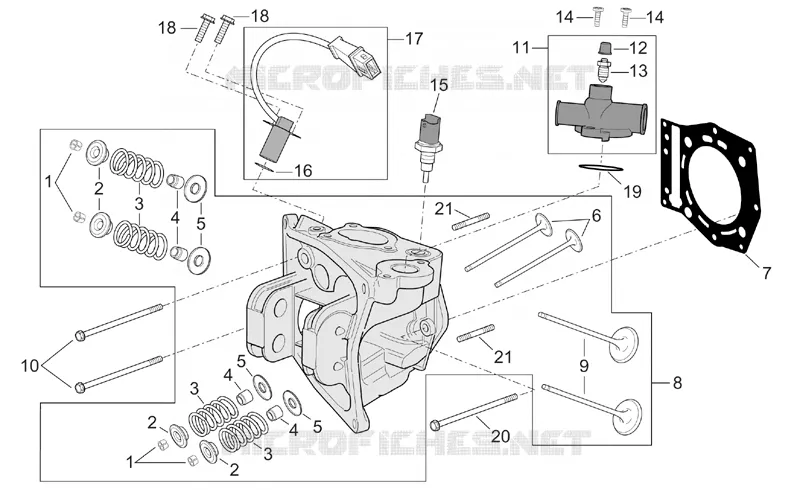

CYLINDER HEAD FOR APRILIA ATLANTIC 2003

Drive shaft

Item numbers

VALVE HALF-CONE
CONE HALF

AP8550508

285846

$2,94

Unit Price

UPPER CUP
UPPVER VALVE CAP

AP8560095

828396

$118,11

Unit Price

VALVE SPRING
VALVE SPRING

AP8560054

826103

$2,67

Unit Price

VALVE GASKET RING
VALVE SEAL RING

AP8550326

436438

$1,34

Unit Price

LOWER CUP
LOWER VALVE CAP

AP8560056

826256

$0,86

Unit Price

EXHAUST VALVE
EXHAUST VALVE

AP8560092

828321

$20,54

Unit Price

CYLINDER HEAD GASKET
CLINDER HEAD GASKET

AP8560149

830008

$21,98

Unit Price

CYLINDER HEAD ASSY.

AP8560049

Contact

CYLINDER HEAD ASSY.

AP8570012

Contact

INTAKE VALVE
BREATHER VALVE FOR CYLINDER HEAD

AP8560093

828322

$29,24

Unit Price

SCREW
SCREW

AP8560041

825692

$3,65

Unit Price

WATER OUTLET UNION

AP8560169

Contact

BLEED VALVE CAP
BLEEDING CAP

AP8560010

063435

$0,34

Unit Price

BLEED SCREW
BLEEDING SCREW

AP8560015

430045

$2,40

Unit Price

SCREW M5X22
CROSS SLOTTED SCREW WITH CYLINDER HEAD

AP8551060

828662

$0,25

Unit Price

TEMP. SENSOR
OIL SENSOR

AP8560099

828646

$63,50

Unit Price

O-RING SEAL RING
RING

AP8560168

825952

$0,15

Unit Price

SENSOR

AP8560091

Contact

PHASE/REVOLUTION SENSOR
ENCODER SENSOR (BV-500)

AP8570017

6389915

$35,33

Unit Price

SCREW W/ FLANGE M6X16
FLANGED HEXAGONAL SCREW M6X16

AP8550557

B016777

$0,16

Unit Price

SCREW W/ FLANGE
FLANGED HEXAGONAL HEAD SCREW

AP8551045

484123

$0,16

Unit Price

PACKING
O-RING

AP8560098

828570

$3,65

Unit Price

SCREW W/ FLANGE M6X90
FLANGED HEXAGONAL HEAD SCREW

AP8560167

B016776

$0,67

Unit Price

STUD BOLT M6X27, 5
STUD M6X27, 5

AP8560077

878991

$1,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Aprilia. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the Cylinder head of your Aprilia Atlantic of ATLANTIC. Let us know if you have any questions.
