1
Engine displacement
125
2
Model
RS
3
Year
2019
4
Trim
RS 125 Replica GP 4T Euro 4 ABS
5
Parts Catalog
REAR BRAKE MASTER CYLINDER
6
Parts Diagram
Parts Catalog
AIR BOX
by
ABS BRAKE SYSTEM
REAR BRAKE MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
1
Levier de frein AR;
AP8235012
$33,03 Unit Price incl. VAT
2
Caoutchouc pour levier
AP8120912
$1,42 Unit Price incl. VAT
3
Rear brake lever spring
AP8221289
Not Available
4
Douille
866514
Not Available
5
Vis FHC
AP8150468
$3,65 Unit Price incl. VAT
6
Belleville spring
AP8121697
$3,65 Unit Price incl. VAT
7
Rondelle
AP8150018
$0,34 Unit Price incl. VAT
8
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
9
Maître cylindre
2B003444
Not Available
10
Kit Couvercle réservoir huile
2B003954
$27,87 Unit Price incl. VAT
11
RONDELLE
658830
$4,92 Unit Price incl. VAT
12
Ecrou autofr. bas
AP8150430
$0,16 Unit Price incl. VAT
13
Vis
AP8150220
$0,17 Unit Price incl. VAT
14
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
15
Rondelle
867238
$7,10 Unit Price incl. VAT
16
Tuyau frein arrière
B044204
$327,44 Unit Price incl. VAT
17
Contacteur de stop
865493
Not Available
18
Raccord
867237
Not Available
19
CLIPS
231590
$0,25 Unit Price incl. VAT

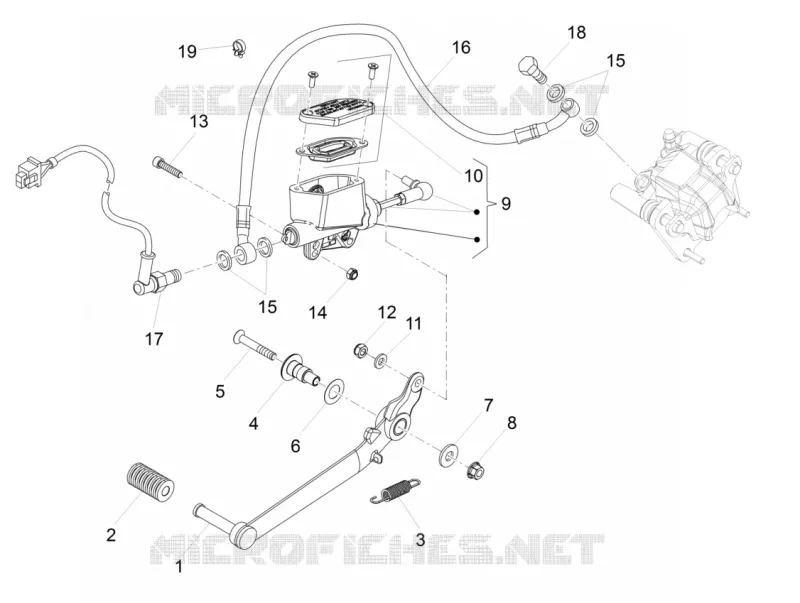

Find the detailed REAR BRAKE MASTER CYLINDER APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RS 125 Replica GP 4T Euro 4 ABS

FRONT BRAKE MASTER CYLINDER

FRONT BRAKE MASTER CYLINDER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CLUTCH

CLUTCH

for RS 125 Replica GP 4T Euro 4 ABS from 2019

EXHAUST MUFFLER

EXHAUST MUFFLER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

AIR BOX

AIR BOX

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

ABS BRAKE SYSTEM

ABS BRAKE SYSTEM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT ELECTRICAL SYSTEM

FRONT ELECTRICAL SYSTEM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

COOLING SYSTEM

COOLING SYSTEM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FLYWHEEL COVER

FLYWHEEL COVER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

LOCKS

LOCKS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

ENGINE - GEAR LEVER - SPROCKET

ENGINE - GEAR LEVER - SPROCKET

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT FAIRING

FRONT FAIRING

for RS 125 Replica GP 4T Euro 4 ABS from 2019

SIDE FAIRINGS

SIDE FAIRINGS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR WHEEL

REAR WHEEL

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FOOTRESTS

FOOTRESTS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

TANK COVER

TANK COVER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

GEAR CHANGE MECHANISM

GEAR CHANGE MECHANISM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

IGNITION UNIT - FLYWHEEL

IGNITION UNIT - FLYWHEEL

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT FORK MING XING

FRONT FORK MING XING

for RS 125 Replica GP 4T Euro 4 ABS from 2019

STEERING

STEERING

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CYLINDER HEAD COVER

CYLINDER HEAD COVER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT FENDER - LOWER FAIRING

FRONT FENDER - LOWER FAIRING

for RS 125 Replica GP 4T Euro 4 ABS from 2019

STAND

STAND

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CLUTCH COVER

CLUTCH COVER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

OIL PUMP

OIL PUMP

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CYLINDER - PISTON

CYLINDER - PISTON

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CYLINDER HEAD - VALVES

CYLINDER HEAD - VALVES

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR FAIRINGS

REAR FAIRINGS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CRANKCASES I

CRANKCASES I

for RS 125 Replica GP 4T Euro 4 ABS from 2019

GEARBOX

GEARBOX

for RS 125 Replica GP 4T Euro 4 ABS from 2019

HANDLEBAR - CONTROLS

HANDLEBAR - CONTROLS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

WATERPUMP

WATERPUMP

for RS 125 Replica GP 4T Euro 4 ABS from 2019

STARTER - STARTER MOTOR

STARTER - STARTER MOTOR

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT CYLINDER TIMING SYSTEM

FRONT CYLINDER TIMING SYSTEM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

STICKERS

STICKERS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

SHOCK ABSORBER

SHOCK ABSORBER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR ELECTRICAL SYSTEM

REAR ELECTRICAL SYSTEM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

THROTTLE BODY

THROTTLE BODY

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CRANKSHAFT

CRANKSHAFT

for RS 125 Replica GP 4T Euro 4 ABS from 2019

SEAT

SEAT

for RS 125 Replica GP 4T Euro 4 ABS from 2019

AIR DUCT

AIR DUCT

for RS 125 Replica GP 4T Euro 4 ABS from 2019

SPEEDOMETER

SPEEDOMETER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FUEL TANK

FUEL TANK

for RS 125 Replica GP 4T Euro 4 ABS from 2019

TAIL LIGHTS

TAIL LIGHTS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CENTRAL FAIRINGS

CENTRAL FAIRINGS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT WHEEL

FRONT WHEEL

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

CLUTCH LEVER

CLUTCH LEVER

for RS 125 Replica GP 4T Euro 4 ABS from 2019

REAR MUDGUARD

REAR MUDGUARD

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRAME

FRAME

for RS 125 Replica GP 4T Euro 4 ABS from 2019

OWNER'S MANUAL - TOOL KIT

OWNER'S MANUAL - TOOL KIT

for RS 125 Replica GP 4T Euro 4 ABS from 2019

SWINGARM

SWINGARM

for RS 125 Replica GP 4T Euro 4 ABS from 2019

FRONT LIGHTS

FRONT LIGHTS

for RS 125 Replica GP 4T Euro 4 ABS from 2019

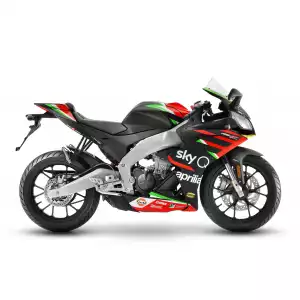

APRILIA RS 125 Replica GP 4T Euro 4 ABS 2019
