1
Engine displacement
1000
2
Model
RSV4
3
Year
2019
4
Trim
RSV4 1000 RR Euro 4 ABS
5
Parts Catalog
CRANKCASES I
6
Parts Diagram
Parts Catalog
FLYWHEEL COVER
by
HANDLEBAR - CONTROLS
CRANKCASES I
1
2
2
2
3
4
4
5
5
5
5
6
7
7
8
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
28
28
29
30
31
32
33
33
33
33
1
Carter
2A0008655
$8 977,48 Unit Price incl. VAT
2
Stud bolt m10x126
857087
$4,37 Unit Price incl. VAT
3
Ecrou bridé
897434
$12,54 Unit Price incl. VAT
4
Goupille
857427
$0,27 Unit Price incl. VAT
5
Goujon
411209
$2,89 Unit Price incl. VAT
6
Vis bride
AP9100433
$6,08 Unit Price incl. VAT
7
Vis bride
AP8152294
$7,75 Unit Price incl. VAT
8
Vis bride
AP8152289
$3,65 Unit Price incl. VAT
9
Bague d'étanchéité
857128
$11,76 Unit Price incl. VAT
10
Vis
AP8152003
$3,70 Unit Price incl. VAT
11
Cage à rouleaux
B045224
$6,35 Unit Price incl. VAT
12
Support
857090
$46,51 Unit Price incl. VAT
13
Rondelle 19x10,5x1,6
857208
$2,22 Unit Price incl. VAT
14
VIS
B046202
$3,65 Unit Price incl. VAT
15
Jet
2A000885
$45,50 Unit Price incl. VAT
16
Vis bride
AP8152292
$3,65 Unit Price incl. VAT
17
Bague d'étanchéité
857109
$1,38 Unit Price incl. VAT
18
Vis
AP8150285
$0,34 Unit Price incl. VAT
19
Gasket ring 12x22
857127
Not Available
20
Vis sans tête
2A000295
$6,60 Unit Price incl. VAT
21
Ecrou
857496
$2,50 Unit Price incl. VAT
22
Joint
857144
$2,72 Unit Price incl. VAT
23
Roulement
897436
$25,76 Unit Price incl. VAT
24
Roulement
897435
$20,14 Unit Price incl. VAT
25
Plaq. retien roul.
AP9150145
$14,30 Unit Price incl. VAT
26
Bouchon
974060
$0,48 Unit Price incl. VAT
27
Vis FHC
AP8152166
$3,65 Unit Price incl. VAT
28
Clapet surete
B045126
$40,88 Unit Price incl. VAT
29
Joint torique
AP8120965
$3,65 Unit Price incl. VAT
30
Jet
2A000363
$10,00 Unit Price incl. VAT
31
TUYAU LUBRIFICATION
2A000569
$61,80 Unit Price incl. VAT
32
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
33
Vis
GU90706009
$3,65 Unit Price incl. VAT

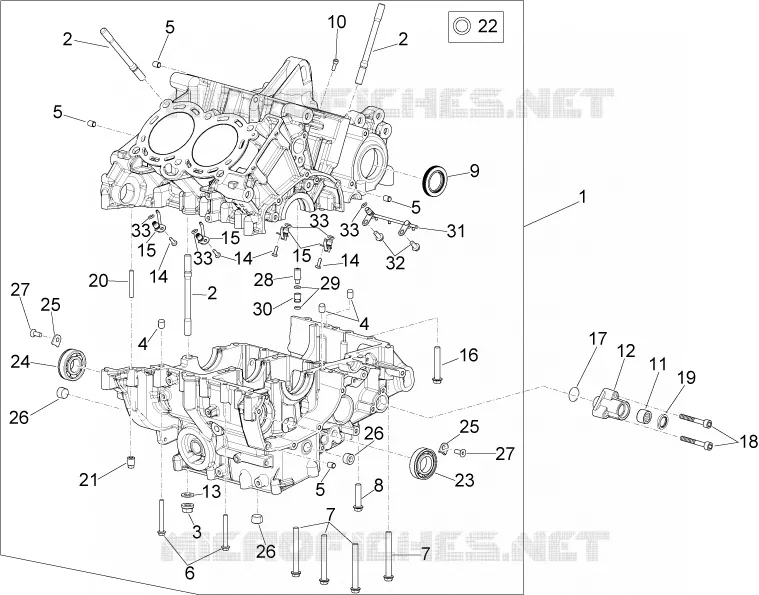

Find the detailed CRANKCASES I APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
