Engine displacement
250
2
Model
LEONARDO
3
Year
2001
4
Trim
Leonardo ST (engine Yamaha)
5
Parts Catalog
Saddle and helmet compartment
6
Parts Diagram
Parts Catalog
Central body - Tunnel
by
Rear body - Rear fairing
Saddle and helmet compartment
1
2
3
4
5
6
7
8
9
10
10
11
12
12
12
13
14
15
16
17
18
18
19
1
Saddle, grey
AP8129327
Not Available
2
Helmet compartment, black
AP8139318
Not Available
3
Saddle spin
AP8221173
Not Available
4
Pillar hinge, grey
AP8158551
Not Available
4
Pillar hinge, black
AP8149997
Not Available
4
Pillar hinge, red
AP8158700
Not Available
4
Pillar hinge, blue
AP8158518
Not Available
5
Goupille
AP8201643
$5,38 Unit Price incl. VAT
6
Rondelle
AP8150014
$3,70 Unit Price incl. VAT
7
Pl.fix.selle pass.
AP8102947
$15,98 Unit Price incl. VAT
8
Lock cable 210 mm
AP8102948
Not Available
9
Saddle lock
AP8102949
Not Available
10
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
11
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
12
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
13
Toolkit
AP8102964
Not Available
14
Inspection cover, black
AP8139433
Not Available
15
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
16
Gasket
AP8144186
Not Available
17
Clip pour vis taraud
AP8201763
$3,65 Unit Price incl. VAT
18
Caoutchouc avant selle;
AP8144089
$5,38 Unit Price incl. VAT
19
Caoutchouc avant latéral;
AP8144087
$5,38 Unit Price incl. VAT

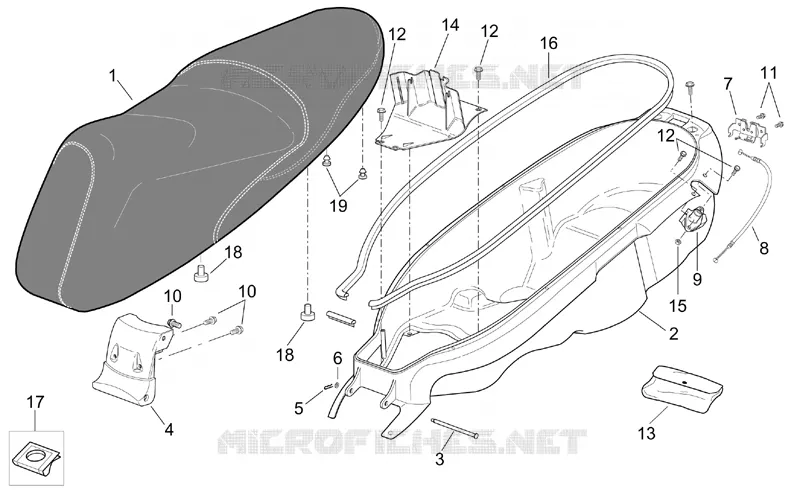

Find the detailed Saddle and helmet compartment APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
