1
Engine displacement
50
2
Model
SR
3
Year
2019
4
Trim
SR 50 R GP REPLICA H2O 2T Euro 4
5
Parts Catalog
Carburettor
6
Parts Diagram
Parts Catalog
CRANKSHAFT
by
IGNITION UNIT - FLYWHEEL
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
Carburettor cpl. PHVA 17.5
CM290002
Not Available
2
SUUPPORT LAMELLES
82775R
$22,29 Unit Price incl. VAT
3
Raccord d'admission
1A008824
$23,06 Unit Price incl. VAT
4
VIS
CM107701
$6,60 Unit Price incl. VAT
5
screw M6x25
830487
Not Available
6
Hose clamp
842202
$3,65 Unit Price incl. VAT
7
DISPOSITIF
CM105905
$304,63 Unit Price incl. VAT
8
VIS
289575
$0,68 Unit Price incl. VAT
9
PLAQUETTE
288863
$1,10 Unit Price incl. VAT
10
VIS
828074
$3,21 Unit Price incl. VAT
11
VIS
152608
$0,63 Unit Price incl. VAT
12
Diffuser 210 HA
CM106231
Not Available
13
POINTEAU
CM128501
$16,34 Unit Price incl. VAT
14
AXE FLOTTEUR
288881
$0,97 Unit Price incl. VAT
15
FLOTTEUR
288882
$6,69 Unit Price incl. VAT
16
GICLEUR
CM102103
$5,00 Unit Price incl. VAT
17
GICLEUR MAXI
CM101709
$4,13 Unit Price incl. VAT
18
Cuvette
1A011739
$25,46 Unit Price incl. VAT
19
VIS
432456
$2,40 Unit Price incl. VAT
20
VIS
288862
$0,62 Unit Price incl. VAT
21
Tube vidange cuvette
CM112001
$4,12 Unit Price incl. VAT
22
CLAPET GAZ
CM141710
$9,18 Unit Price incl. VAT
23
POINTEAU
CM107510
$14,18 Unit Price incl. VAT
24
RESSORT
482942
$0,87 Unit Price incl. VAT
25
COUVERCLE CARBURATEUR QUARTZ
431654
$3,25 Unit Price incl. VAT
26
VIS
288865
$0,33 Unit Price incl. VAT
27
Capuchon
875551
$3,68 Unit Price incl. VAT
28
TUBE
113903
$4,32 Unit Price incl. VAT
29
BAGUE
288873
$1,20 Unit Price incl. VAT
30
CIRCLIPS
288872
$0,62 Unit Price incl. VAT
31
RESSORT
085285
$4,82 Unit Price incl. VAT
32
SOUPAPE SOLENOIDE
873270
$84,94 Unit Price incl. VAT
33
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
34
Equerre
1B005111
$5,14 Unit Price incl. VAT
35
Screw w/ flange M6x30
289731
Not Available
36
Collier
AP8120179
$3,65 Unit Price incl. VAT
37
Tuyau dépression
CM027927
$2,06 Unit Price incl. VAT
38
PLAQUE
639632
$5,45 Unit Price incl. VAT

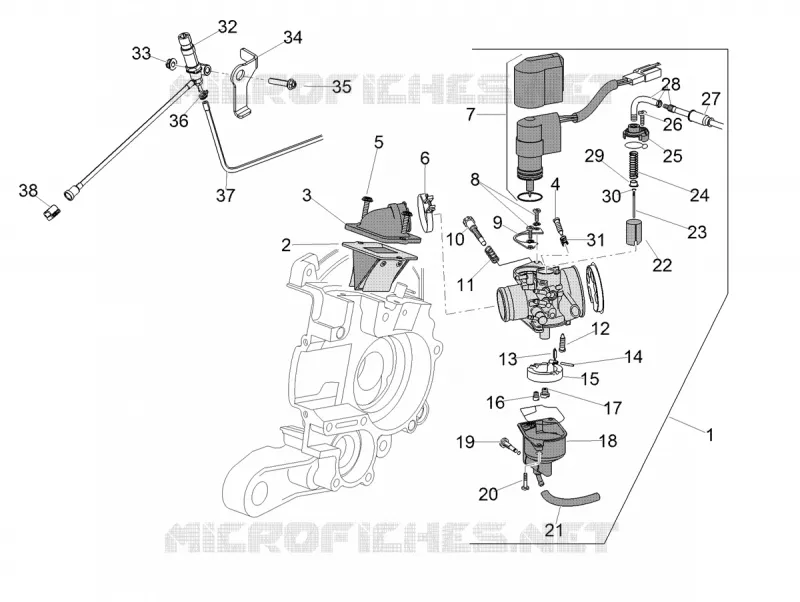

Find the detailed Carburettor APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SR 50 R GP REPLICA H2O 2T Euro 4

ENGINE - GEAR LEVER - SPROCKET

ENGINE - GEAR LEVER - SPROCKET

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CRANKCASES I

CRANKCASES I

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

AIR BOX

AIR BOX

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CENTRAL ELECTRICAL SYSTEM

CENTRAL ELECTRICAL SYSTEM

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SHOCK ABSORBER

SHOCK ABSORBER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

REAR WHEEL

REAR WHEEL

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT BRAKE MASTER CYLINDER

FRONT BRAKE MASTER CYLINDER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

REAR BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

HANDLEBAR - CONTROLS

HANDLEBAR - CONTROLS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT LIGHTS

FRONT LIGHTS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRAME

FRAME

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FLYWHEEL COVER

FLYWHEEL COVER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

STARTER - STARTER MOTOR

STARTER - STARTER MOTOR

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

OIL PUMP

OIL PUMP

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Driven pulley shaft

Driven pulley shaft

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SPEEDOMETER

SPEEDOMETER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

OWNER'S MANUAL - TOOL KIT

OWNER'S MANUAL - TOOL KIT

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CYLINDER - PISTON

CYLINDER - PISTON

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CRANKSHAFT

CRANKSHAFT

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Carburettor

Carburettor

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

IGNITION UNIT - FLYWHEEL

IGNITION UNIT - FLYWHEEL

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CYLINDER HEAD - VALVES

CYLINDER HEAD - VALVES

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SIDE FAIRINGS

SIDE FAIRINGS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CENTRAL FAIRINGS

CENTRAL FAIRINGS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SEAT

SEAT

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SADDLE COMPARTMENT

SADDLE COMPARTMENT

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

REAR FAIRINGS

REAR FAIRINGS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

STAND

STAND

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT FENDER - LOWER FAIRING

FRONT FENDER - LOWER FAIRING

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT FAIRING

FRONT FAIRING

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Windshield

Windshield

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

REAR MUDGUARD

REAR MUDGUARD

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FRONT WHEEL

FRONT WHEEL

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

WATERPUMP

WATERPUMP

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CLUTCH COVER

CLUTCH COVER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

CLUTCH

CLUTCH

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Half-pulley assy., driving

Half-pulley assy., driving

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

TAIL LIGHTS

TAIL LIGHTS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

FUEL TANK

FUEL TANK

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Oil tank

Oil tank

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

COOLING SYSTEM

COOLING SYSTEM

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

Front fork Kaifa

Front fork Kaifa

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

LOCKS

LOCKS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

STICKERS

STICKERS

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

SECONDARY AIR

SECONDARY AIR

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

EXHAUST MUFFLER

EXHAUST MUFFLER

for SR 50 R GP REPLICA H2O 2T Euro 4 from 2019

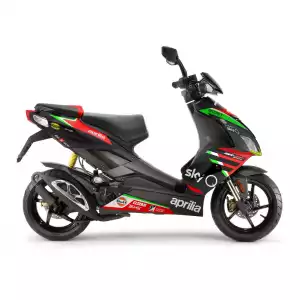

APRILIA SR 50 R GP REPLICA H2O 2T Euro 4 2019
