1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
SHIVER 900 Euro 4 ABS NAVI
5
Parts Catalog

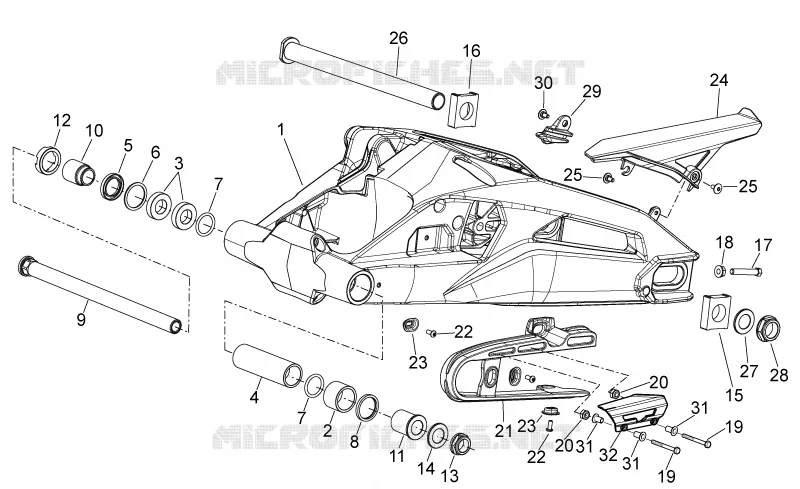

SWINGARM
6
Parts Diagram
Parts Catalog
STAND
by
FRONT FENDER - LOWER FAIRING
SWINGARM
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
22
23
23
24
25
25
26
27
28
29
30
31
31
31
32
1
BIG FORK
85178200XNB
$702,09 Unit Price incl. VAT
2
Roller cage
AP8110078
$11,34 Unit Price incl. VAT
3
Ball bearing
AP8110079
$15,66 Unit Price incl. VAT
4
Internal spacer
AP8121570
$18,12 Unit Price incl. VAT
5
Gasket ring
AP8144006
$5,20 Unit Price incl. VAT
6
Inside circlip d37
AP8121204
$3,65 Unit Price incl. VAT
7
O-ring 134
AP8144048
$3,65 Unit Price incl. VAT
8
Gasket ring
AP8144005
$8,01 Unit Price incl. VAT
9
Rear swing arm pin
B045424
$134,94 Unit Price incl. VAT
10
Adjustment bush
AP8121200
$10,95 Unit Price incl. VAT
11
Rear int.sw.arm piv.bush
AP8121203
$10,95 Unit Price incl. VAT
12
Swing arm ring nut
648707
$3,78 Unit Price incl. VAT
13
Rear wheel spindle nut
AP8125763
$8,12 Unit Price incl. VAT
14
Wheel pin washer
AP8125687
$0,42 Unit Price incl. VAT
15
LH chain guide plate
AP8144443
$19,31 Unit Price incl. VAT
16
RH chain guide plate
AP8144444
$22,29 Unit Price incl. VAT
17
Chain tens.adjuster screw
AP8152305
$3,65 Unit Price incl. VAT
18
Nut M6
2B004511
$0,34 Unit Price incl. VAT
19
Hex socket screw M6x35
AP8152136
$0,34 Unit Price incl. VAT
20
Low self-locking nut
AP8150430
$0,16 Unit Price incl. VAT
21
Chain guide plate
896494
$10,27 Unit Price incl. VAT
22
Hex socket screw
AP8152174
$3,65 Unit Price incl. VAT
23
Cup for shoe
AP8234020
$2,74 Unit Price incl. VAT
24
Chain guard
851557
$7,12 Unit Price incl. VAT
25
Hex socket screw M5x12
AP8152267
$0,34 Unit Price incl. VAT
26
Wheel pin
B045422
Not Available
27
Washer 25,2x36x1
AP8152323
$3,70 Unit Price incl. VAT
28
Wheel spindle nut M25x1,5
AP8152324
$7,30 Unit Price incl. VAT
29
Sliding block
854817
$4,59 Unit Price incl. VAT
30
Hex socket screw M5x12
AP8152267
$0,34 Unit Price incl. VAT
31
T bush *
AP8121725
$3,65 Unit Price incl. VAT
32
Chain guard
896495
$6,21 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
