1
Engine displacement
1100
2
Model
TUONO
3
Year
2020
4
Trim
Tuono V4 1100 RR Euro 4 ABS
5
Parts Catalog

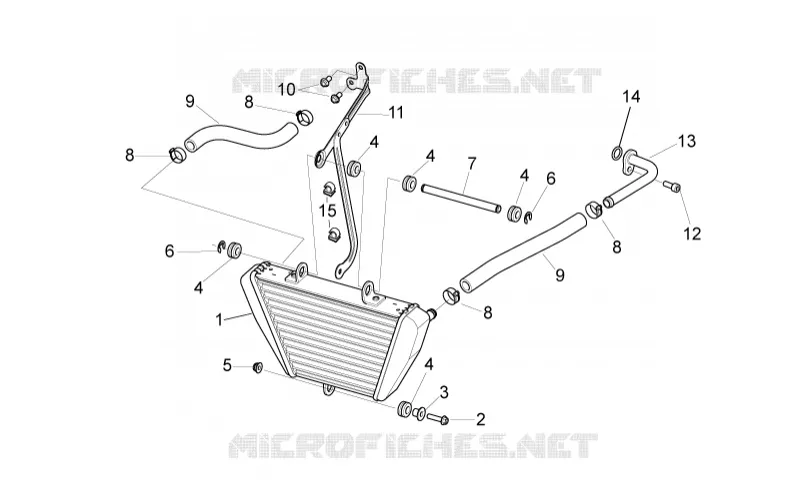

OIL COOLER
6
Parts Diagram
Parts Catalog
Exhaust pipe I
by
OIL COOLER
1
2
3
4
4
4
4
4
5
6
6
7
8
8
8
8
9
9
10
11
12
13
14
15
1
Oil cooler
2B000897
$563,76 Unit Price incl. VAT
2
Screw w/ flange M6x25
AP8152280
$0,25 Unit Price incl. VAT
3
T bush
AP8221023
$0,93 Unit Price incl. VAT
4
Rubber spacer
AP8120030
$0,85 Unit Price incl. VAT
5
Self-locking nut M6
AP8152299
$0,34 Unit Price incl. VAT
6
Circlip d8
AP8121428
$3,65 Unit Price incl. VAT
7
Spacer
858927
$3,69 Unit Price incl. VAT
8
White hose clip D17,5x8
AP8102349
$0,85 Unit Price incl. VAT
9
Oil pipe 12x19
AP8106389
Not Available
10
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
11
Radiator support bracket
2B001478
$25,82 Unit Price incl. VAT
12
Hex socket screw M6x16
AP8150137
$3,70 Unit Price incl. VAT
13
Pipe
858489
$24,74 Unit Price incl. VAT
14
O-ring 115
AP8144008
$3,65 Unit Price incl. VAT
15
Black cable guide
AP8201727
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
