Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
CENTRAL ELECTRICAL SYSTEM
FRONT ELECTRICAL SYSTEM
25
1
2
3
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Klaxon
890979
$26,82 Unit Price incl. VAT
2
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
3
PLAQUETTE
254485
$0,34 Unit Price incl. VAT
4
Régulateur de tension
B043488
$314,97 Unit Price incl. VAT
5
Vis
AP8152128
$0,34 Unit Price incl. VAT
6
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
7
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
8
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
9
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
10
Douille;
AP8121991
$5,20 Unit Price incl. VAT
11
Câblage principal
2D000475
$1 115,84 Unit Price incl. VAT
12
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
13
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
14
Support détecteur
858916
$1,62 Unit Price incl. VAT
15
Support
890760
$0,51 Unit Price incl. VAT
16
SUPPORT CLAXON
2B001765
$15,98 Unit Price incl. VAT
17
Vis
AP8150500
$1,53 Unit Price incl. VAT
18
Clip
AP8102375
$0,69 Unit Price incl. VAT
19
Interrupteur stop
2D000325
$45,09 Unit Price incl. VAT
20
Vis
AP8150500
$1,53 Unit Price incl. VAT
21
Support
2B003519
$5,38 Unit Price incl. VAT
22
Cablage
2D000178
$18,44 Unit Price incl. VAT
23
Cablage
2D000476
$122,96 Unit Price incl. VAT
24
Centrale ASC
2D0004799
Not Available
25
Couvercle
2B005646
$10,76 Unit Price incl. VAT

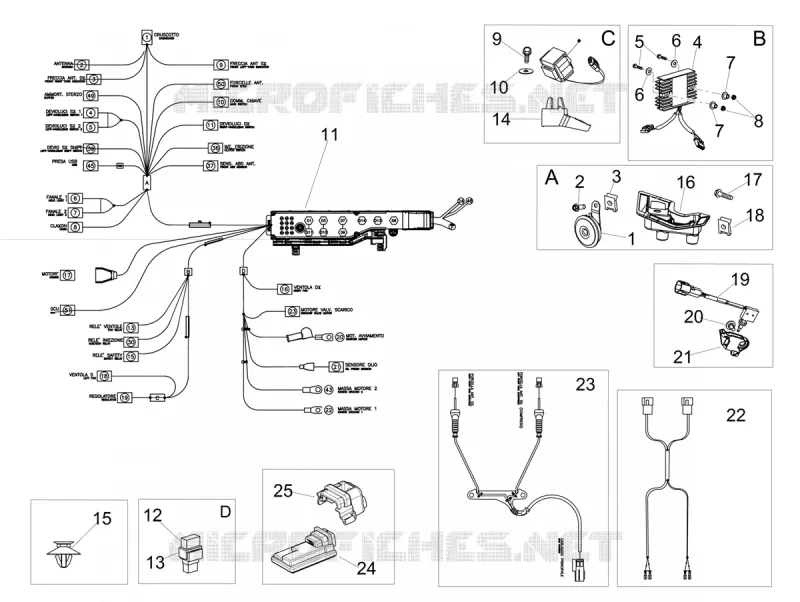

Find the detailed FRONT ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
