1
Engine displacement
900
2
Model
DORSODURO
3
Year
2019
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog

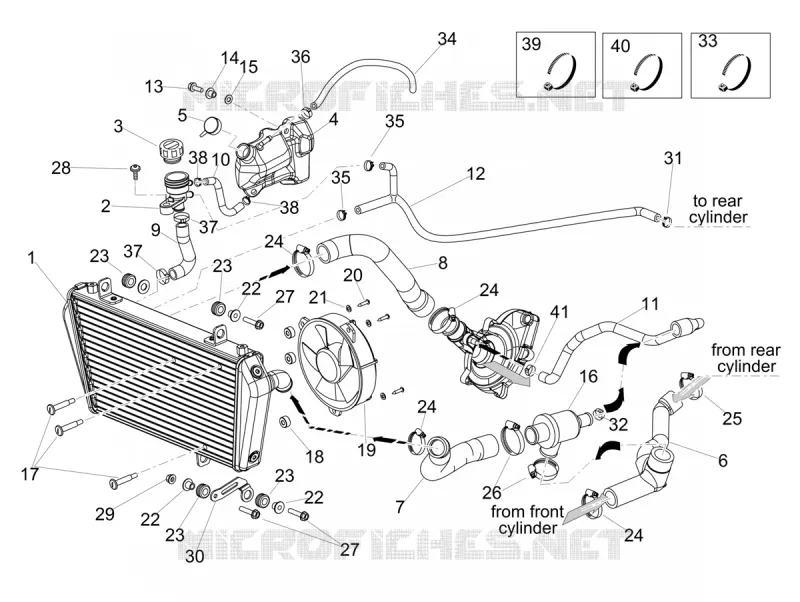

COOLING SYSTEM
6
Parts Diagram
Parts Catalog
by
FRONT ELECTRICAL SYSTEM
COOLING SYSTEM
41
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
23
23
23
24
24
24
24
25
26
27
27
28
29
30
31
32
33
34
35
35
36
37
37
38
38
39
40
1
Radiateur eau
897162
$368,09 Unit Price incl. VAT
2
Tubulure remplissage
AP8144644
$5,38 Unit Price incl. VAT
3
Bouchon
AP8102615
$8,91 Unit Price incl. VAT
4
Réservoir refoidissement
856802
$50,59 Unit Price incl. VAT
5
Expansion tank plug
AP8104836
Not Available
6
Tuyau
2B003862
$69,32 Unit Price incl. VAT
7
Tuyau soupap-radiat.
2B003860
$18,14 Unit Price incl. VAT
8
Tuyau
897414
$10,27 Unit Price incl. VAT
9
TUYAU
851599
$5,83 Unit Price incl. VAT
10
Tuyau essence D.7X11
890496
$18,39 Unit Price incl. VAT
11
Tube soup.pompe
2B003861
$20,73 Unit Price incl. VAT
12
Tuyau de purge
860328
$38,79 Unit Price incl. VAT
13
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
14
"Douille en ""T"" *"
AP8221145
$3,65 Unit Price incl. VAT
15
Caoutchouc
AP8220366
$4,62 Unit Price incl. VAT
16
THERMOSTAT
834232
$33,54 Unit Price incl. VAT
17
Tige;
AP8121464
$5,38 Unit Price incl. VAT
18
Entretoise
AP8161083
$3,65 Unit Price incl. VAT
19
Fan, cpl.
AP8124930
Not Available
20
Vis
AP8150270
$3,65 Unit Price incl. VAT
21
Rondelle
AP8150248
$0,16 Unit Price incl. VAT
22
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
23
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
24
COLLIER
CM001924
$5,38 Unit Price incl. VAT
25
Collier clic
AP8201409
$3,65 Unit Price incl. VAT
26
Collier à ressort
CM226909
$4,46 Unit Price incl. VAT
27
Vis bride
AP8152280
$0,25 Unit Price incl. VAT
28
Vis bride
AP8152246
$0,27 Unit Price incl. VAT
29
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
30
SUPPORT
853458
$2,39 Unit Price incl. VAT
31
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
32
Collier clic
AP8101743
$5,38 Unit Price incl. VAT
33
Collier
AP8120657
$0,34 Unit Price incl. VAT
34
TUYAU
AP8220402
$4,62 Unit Price incl. VAT
35
COLLIER
CM001914
$0,75 Unit Price incl. VAT
36
Collier serr. Tube
AP8102738
$1,42 Unit Price incl. VAT
37
COLLIER
CM001905
$1,38 Unit Price incl. VAT
38
Collier clic
AP8120446
$0,75 Unit Price incl. VAT
39
Collier clic
AP8102786
$1,10 Unit Price incl. VAT
40
Collier clic
AP8102239
$0,84 Unit Price incl. VAT
41
Collier
CM226901
$4,82 Unit Price incl. VAT

Find the detailed COOLING SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Dorsoduro 900 Euro 4 ABS

COOLING SYSTEM

COOLING SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT ELECTRICAL SYSTEM

FRONT ELECTRICAL SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

REAR ELECTRICAL SYSTEM

REAR ELECTRICAL SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for Dorsoduro 900 Euro 4 ABS from 2019

SWINGARM

SWINGARM

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT FENDER - LOWER FAIRING

FRONT FENDER - LOWER FAIRING

for Dorsoduro 900 Euro 4 ABS from 2019

Windshield

Windshield

for Dorsoduro 900 Euro 4 ABS from 2019

SIDE FAIRINGS

SIDE FAIRINGS

for Dorsoduro 900 Euro 4 ABS from 2019

SEAT

SEAT

for Dorsoduro 900 Euro 4 ABS from 2019

SADDLE COMPARTMENT

SADDLE COMPARTMENT

for Dorsoduro 900 Euro 4 ABS from 2019

REAR FAIRINGS

REAR FAIRINGS

for Dorsoduro 900 Euro 4 ABS from 2019

LOCKS

LOCKS

for Dorsoduro 900 Euro 4 ABS from 2019

OWNER'S MANUAL - TOOL KIT

OWNER'S MANUAL - TOOL KIT

for Dorsoduro 900 Euro 4 ABS from 2019

TAIL LIGHTS

TAIL LIGHTS

for Dorsoduro 900 Euro 4 ABS from 2019

FUEL TANK

FUEL TANK

for Dorsoduro 900 Euro 4 ABS from 2019

FOOTRESTS

FOOTRESTS

for Dorsoduro 900 Euro 4 ABS from 2019

STICKERS

STICKERS

for Dorsoduro 900 Euro 4 ABS from 2019

IGNITION UNIT - FLYWHEEL

IGNITION UNIT - FLYWHEEL

for Dorsoduro 900 Euro 4 ABS from 2019

EXHAUST MUFFLER

EXHAUST MUFFLER

for Dorsoduro 900 Euro 4 ABS from 2019

ENGINE - GEAR LEVER - SPROCKET

ENGINE - GEAR LEVER - SPROCKET

for Dorsoduro 900 Euro 4 ABS from 2019

CRANKCASES I

CRANKCASES I

for Dorsoduro 900 Euro 4 ABS from 2019

CRANKCASES I

CRANKCASES I

for Dorsoduro 900 Euro 4 ABS from 2019

AIR BOX

AIR BOX

for Dorsoduro 900 Euro 4 ABS from 2019

THROTTLE BODY

THROTTLE BODY

for Dorsoduro 900 Euro 4 ABS from 2019

CYLINDER HEAD COVER

CYLINDER HEAD COVER

for Dorsoduro 900 Euro 4 ABS from 2019

CYLINDER HEAD - VALVES

CYLINDER HEAD - VALVES

for Dorsoduro 900 Euro 4 ABS from 2019

FUEL EVAP SYSTEM

FUEL EVAP SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

ABS BRAKE SYSTEM

ABS BRAKE SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

FRAME

FRAME

for Dorsoduro 900 Euro 4 ABS from 2019

STEERING

STEERING

for Dorsoduro 900 Euro 4 ABS from 2019

HANDLEBAR - CONTROLS

HANDLEBAR - CONTROLS

for Dorsoduro 900 Euro 4 ABS from 2019

CLUTCH LEVER

CLUTCH LEVER

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT LIGHTS

FRONT LIGHTS

for Dorsoduro 900 Euro 4 ABS from 2019

STAND

STAND

for Dorsoduro 900 Euro 4 ABS from 2019

SPEEDOMETER

SPEEDOMETER

for Dorsoduro 900 Euro 4 ABS from 2019

WATERPUMP

WATERPUMP

for Dorsoduro 900 Euro 4 ABS from 2019

CLUTCH COVER

CLUTCH COVER

for Dorsoduro 900 Euro 4 ABS from 2019

CLUTCH

CLUTCH

for Dorsoduro 900 Euro 4 ABS from 2019

Front fork Kayaba

Front fork Kayaba

for Dorsoduro 900 Euro 4 ABS from 2019

SHOCK ABSORBER

SHOCK ABSORBER

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT CYLINDER TIMING SYSTEM

FRONT CYLINDER TIMING SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

REAR CYLINDER TIMING SYSTEM

REAR CYLINDER TIMING SYSTEM

for Dorsoduro 900 Euro 4 ABS from 2019

CYLINDER - PISTON

CYLINDER - PISTON

for Dorsoduro 900 Euro 4 ABS from 2019

CRANKSHAFT

CRANKSHAFT

for Dorsoduro 900 Euro 4 ABS from 2019

GEAR CHANGE MECHANISM

GEAR CHANGE MECHANISM

for Dorsoduro 900 Euro 4 ABS from 2019

GEARBOX

GEARBOX

for Dorsoduro 900 Euro 4 ABS from 2019

OIL PUMP - OIL FILTER

OIL PUMP - OIL FILTER

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT WHEEL

FRONT WHEEL

for Dorsoduro 900 Euro 4 ABS from 2019

REAR WHEEL

REAR WHEEL

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT BRAKE MASTER CYLINDER

FRONT BRAKE MASTER CYLINDER

for Dorsoduro 900 Euro 4 ABS from 2019

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for Dorsoduro 900 Euro 4 ABS from 2019

REAR BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

for Dorsoduro 900 Euro 4 ABS from 2019

PAD

PAD

for Dorsoduro 900 Euro 4 ABS from 2019

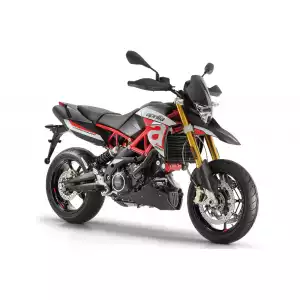

APRILIA Dorsoduro 900 Euro 4 ABS 2019
