Parts Catalog

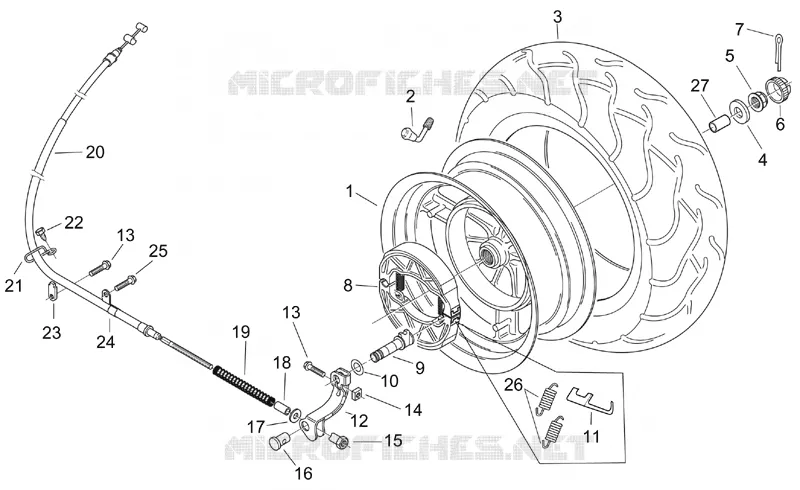

Rear wheel
6
Parts Diagram
Parts Catalog
Rear body - Covers
by
Acc. - Top/cases, side cases
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Rear wheel
AP8108817
Not Available
2
Tubeless tyre valve
AP8201679
$5,38 Unit Price incl. VAT
3
Tyre
0000000
Not Available
4
Ring
AP8125803
Not Available
5
Rear wheel nut
AP8550307
Not Available
6
Cap
AP8550261
$5,38 Unit Price incl. VAT
7
Split pin
AP8121431
$3,65 Unit Price incl. VAT
8
Brake shoes+springs
AP8550360
Not Available
9
Rear brake cam
AP8540033
Not Available
10
Gasket ring
AP8540032
Not Available
11
Plate
AP8550145
Not Available
12
Rear brake lever
AP8540034
Not Available
13
Screw w/ flange M6x30
AP8550558
$3,65 Unit Price incl. VAT
14
Square nut
AP8225373
Not Available
15
Rear brake lever register
AP8101103
$5,38 Unit Price incl. VAT
16
Brake cable retainer
AP8221120
$5,38 Unit Price incl. VAT
17
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
18
Spacer 6,5x10x19*
AP8121020
$3,65 Unit Price incl. VAT
19
Coil compress. spring *
AP8213137
$5,38 Unit Price incl. VAT
20
Rear brake cable
AP8114442
$30,28 Unit Price incl. VAT
20
Rear brake cable
AP8114398
Not Available
21
Cable-guide
AP8121856
$3,65 Unit Price incl. VAT
22
Self-locking TE screw 4,8x12
AP8152088
$0,05 Unit Price incl. VAT
23
Plate
AP8550017
Not Available
24
Hose clamp
AP8550402
Not Available
25
screw M6x35
AP8550079
Not Available
26
Brake shoes return spring
AP8550144
Not Available
27
Rear wheel spacer
AP8125892
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
