1
Engine displacement
900
2
Model
DORSODURO
3
Year
2020
4
Trim
Dorsoduro 900 Euro 4 ABS
5
Parts Catalog
SPEEDOMETER
6
Parts Diagram
Parts Catalog
FRONT LIGHTS
by
TAIL LIGHTS
SPEEDOMETER
1
2
3
3
4
5
5
6
6
7
8
8
9
9
9
10
10
1
Instrument panel
2D000350
Not Available
2
Support
2B004177
$58,88 Unit Price incl. VAT
3
Caoutchouc
AP8220150
$1,42 Unit Price incl. VAT
4
Adaptateur
2B003901
$8,10 Unit Price incl. VAT
5
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
6
Vis
AP8150044
$3,65 Unit Price incl. VAT
7
Vis
896174
$0,34 Unit Price incl. VAT
8
Vis taraud 5x14
AP8150509
$0,51 Unit Price incl. VAT
9
Rondelle
AP8150382
$0,16 Unit Price incl. VAT
10
Douille
AP9100053
$1,70 Unit Price incl. VAT

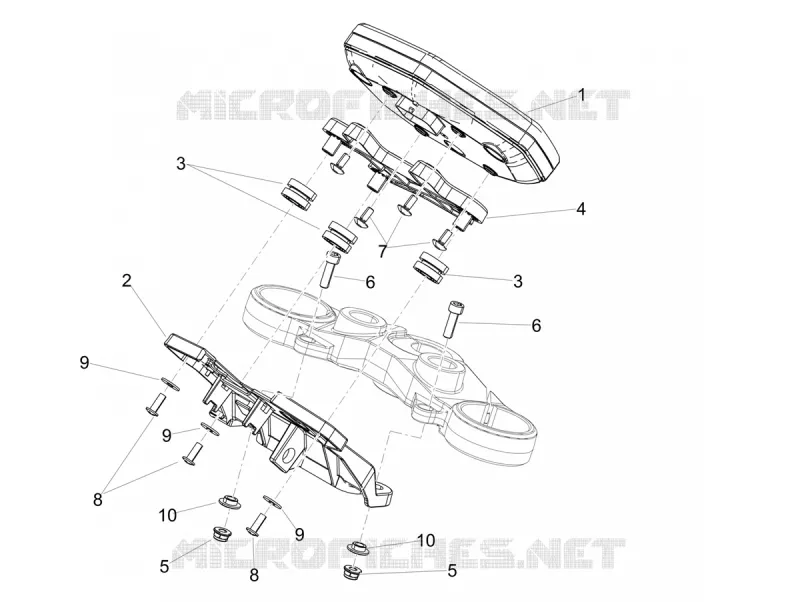

Find the detailed SPEEDOMETER APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
