1
Engine displacement
125
2
Model
MOJITO
3
Year
1999
4
Trim
Mojito
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
by
Central stand - Connecting rod
Frame
1
2
2
3
4
5
6
7
7
8
8
9
9
10
10
11
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
1
Frame with electro-coating
AP8146235
Not Available
2
Ball ring set, complete
AP8203923
Not Available
3
Upper body support
AP8234157
Not Available
4
Guide-câble
AP8221172
$5,38 Unit Price incl. VAT
5
Vis bride M6X16
AP8152278
$1,77 Unit Price incl. VAT
6
Guide-câble
AP8220269
$5,38 Unit Price incl. VAT
7
Rear footrests, pair
AP8132812
Not Available
8
Res. hélic. compr
AP8121133
$0,53 Unit Price incl. VAT
9
Bille
AP8101861
$0,10 Unit Price incl. VAT
10
Footrest plate
AP8134629
$5,38 Unit Price incl. VAT
11
LH Rear footrest pin
AP8121427
Not Available
12
RH Rear footrest pin
AP8134565
Not Available
13
Pivot repose-pieds
AP8221057
$5,38 Unit Price incl. VAT
14
Anneau d'arrêt rad.
AP8120573
$3,65 Unit Price incl. VAT
15
Vis FHC
AP8152387
$3,65 Unit Price incl. VAT
16
Entretoies att.rep-pieds p.
AP8121403
$5,20 Unit Price incl. VAT
17
Lock prot.
AP8249095
Not Available
18
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
19
Clip M6
AP8102376
Not Available
20
Clip
AP8102375
$0,69 Unit Price incl. VAT
21
Ecrou en cage
AP8221213
$3,65 Unit Price incl. VAT
22
Clip pour vis taraud
AP8201763
$3,65 Unit Price incl. VAT
23
Clip pour vis taraud
AP8201764
$3,65 Unit Price incl. VAT
24
Rivet
AP8201457
$5,38 Unit Price incl. VAT

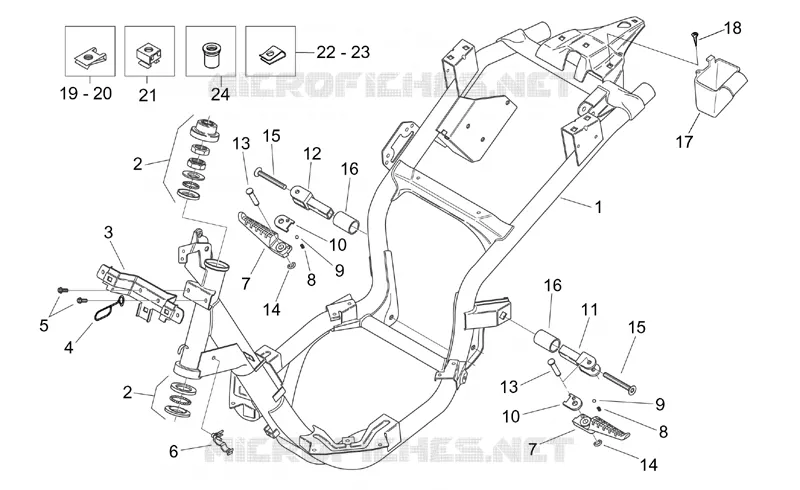

Find the detailed Frame APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
