1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
REAR ELECTRICAL SYSTEM
FRONT ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Câblage principal
2D000357
$737,75 Unit Price incl. VAT
2
Voltage regulator
58189R
$319,95 Unit Price incl. VAT
3
Vis bride
AP8152281
$1,70 Unit Price incl. VAT
4
Electronic injection device
CM281705
Not Available
5
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
6
Bobine H.T.
1A011798
$79,51 Unit Price incl. VAT
7
Vis bride
874554
$0,25 Unit Price incl. VAT
8
FASCETTA IN NYLON NERA
AP8102386
$0,07 Unit Price incl. VAT
9
Collier, noir
AP8120416
$5,38 Unit Price incl. VAT
10
Collier
AP8120657
$0,34 Unit Price incl. VAT
11
Fusible
CM225607
$2,60 Unit Price incl. VAT
12
Fusible
CM225615
$5,62 Unit Price incl. VAT
13
FUSIBLE
CM225610
$0,92 Unit Price incl. VAT
14
Collier serr. Tube
890721
$1,15 Unit Price incl. VAT
15
Détec. temper. air
AP8124936
$22,53 Unit Price incl. VAT
16
AVERTISSEUR
854830
$20,00 Unit Price incl. VAT
17
Vis bride
AP8152280
$0,25 Unit Price incl. VAT
18
Passe-câble
894704
$0,42 Unit Price incl. VAT
19
CABLE H.T.
851630
$6,37 Unit Price incl. VAT
20
Capuchon
581061
$1,37 Unit Price incl. VAT
21
Ecrou
AP8150026
$0,16 Unit Price incl. VAT
22
RONDELLE
658830
$4,92 Unit Price incl. VAT
23
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
24
Caoutchouc
AP8220283
$0,75 Unit Price incl. VAT
25
Collier él.
860744
$3,38 Unit Price incl. VAT
26
Prise USB
1D002753
Not Available
27
PASSE CABLES
1B001591
$1,56 Unit Price incl. VAT
28
Support
2B006099
$3,61 Unit Price incl. VAT
29
Vis
AP8150045
$0,34 Unit Price incl. VAT
30
Rondelle 6,4x13x1,5
GU95005306
$0,16 Unit Price incl. VAT
31
Rondelle
AP8152105
$3,65 Unit Price incl. VAT
32
Douille
2S001133
$3,45 Unit Price incl. VAT

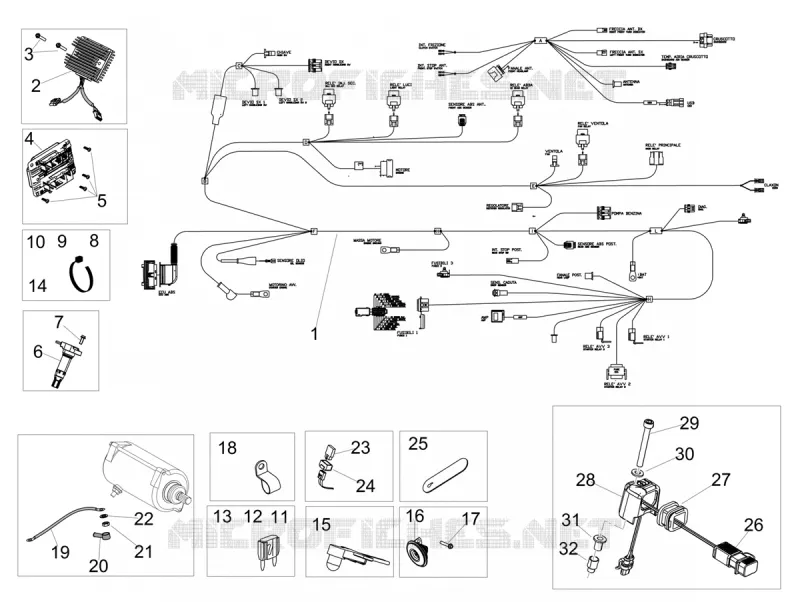

Find the detailed FRONT ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for Shiver 900 Euro 4 ABS NAVI

FOOTRESTS

FOOTRESTS

for Shiver 900 Euro 4 ABS NAVI from 2019

STAND

STAND

for Shiver 900 Euro 4 ABS NAVI from 2019

SWINGARM

SWINGARM

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT FENDER - LOWER FAIRING

FRONT FENDER - LOWER FAIRING

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT WHEEL

FRONT WHEEL

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR WHEEL

REAR WHEEL

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT BRAKE MASTER CYLINDER

FRONT BRAKE MASTER CYLINDER

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR BRAKE MASTER CYLINDER

REAR BRAKE MASTER CYLINDER

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for Shiver 900 Euro 4 ABS NAVI from 2019

FUEL TANK

FUEL TANK

for Shiver 900 Euro 4 ABS NAVI from 2019

FUEL EVAP SYSTEM

FUEL EVAP SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

COOLING SYSTEM

COOLING SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT ELECTRICAL SYSTEM

FRONT ELECTRICAL SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR ELECTRICAL SYSTEM

REAR ELECTRICAL SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

OIL PUMP - OIL FILTER

OIL PUMP - OIL FILTER

for Shiver 900 Euro 4 ABS NAVI from 2019

SHOCK ABSORBER

SHOCK ABSORBER

for Shiver 900 Euro 4 ABS NAVI from 2019

FRAME

FRAME

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for Shiver 900 Euro 4 ABS NAVI from 2019

EXHAUST MUFFLER

EXHAUST MUFFLER

for Shiver 900 Euro 4 ABS NAVI from 2019

ENGINE - GEAR LEVER - SPROCKET

ENGINE - GEAR LEVER - SPROCKET

for Shiver 900 Euro 4 ABS NAVI from 2019

CRANKCASES I

CRANKCASES I

for Shiver 900 Euro 4 ABS NAVI from 2019

CRANKCASES I

CRANKCASES I

for Shiver 900 Euro 4 ABS NAVI from 2019

AIR BOX

AIR BOX

for Shiver 900 Euro 4 ABS NAVI from 2019

SIDE FAIRINGS

SIDE FAIRINGS

for Shiver 900 Euro 4 ABS NAVI from 2019

TANK COVER

TANK COVER

for Shiver 900 Euro 4 ABS NAVI from 2019

SEAT

SEAT

for Shiver 900 Euro 4 ABS NAVI from 2019

SADDLE COMPARTMENT

SADDLE COMPARTMENT

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR FAIRINGS

REAR FAIRINGS

for Shiver 900 Euro 4 ABS NAVI from 2019

LOCKS

LOCKS

for Shiver 900 Euro 4 ABS NAVI from 2019

OWNER'S MANUAL - TOOL KIT

OWNER'S MANUAL - TOOL KIT

for Shiver 900 Euro 4 ABS NAVI from 2019

STICKERS

STICKERS

for Shiver 900 Euro 4 ABS NAVI from 2019

IGNITION UNIT - FLYWHEEL

IGNITION UNIT - FLYWHEEL

for Shiver 900 Euro 4 ABS NAVI from 2019

ABS BRAKE SYSTEM

ABS BRAKE SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

STEERING

STEERING

for Shiver 900 Euro 4 ABS NAVI from 2019

HANDLEBAR - CONTROLS

HANDLEBAR - CONTROLS

for Shiver 900 Euro 4 ABS NAVI from 2019

CLUTCH LEVER

CLUTCH LEVER

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT LIGHTS

FRONT LIGHTS

for Shiver 900 Euro 4 ABS NAVI from 2019

SPEEDOMETER

SPEEDOMETER

for Shiver 900 Euro 4 ABS NAVI from 2019

TAIL LIGHTS

TAIL LIGHTS

for Shiver 900 Euro 4 ABS NAVI from 2019

Front fork Kayaba

Front fork Kayaba

for Shiver 900 Euro 4 ABS NAVI from 2019

THROTTLE BODY

THROTTLE BODY

for Shiver 900 Euro 4 ABS NAVI from 2019

CYLINDER HEAD COVER

CYLINDER HEAD COVER

for Shiver 900 Euro 4 ABS NAVI from 2019

CYLINDER HEAD - VALVES

CYLINDER HEAD - VALVES

for Shiver 900 Euro 4 ABS NAVI from 2019

PAD

PAD

for Shiver 900 Euro 4 ABS NAVI from 2019

FRONT CYLINDER TIMING SYSTEM

FRONT CYLINDER TIMING SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

REAR CYLINDER TIMING SYSTEM

REAR CYLINDER TIMING SYSTEM

for Shiver 900 Euro 4 ABS NAVI from 2019

CYLINDER - PISTON

CYLINDER - PISTON

for Shiver 900 Euro 4 ABS NAVI from 2019

CRANKSHAFT

CRANKSHAFT

for Shiver 900 Euro 4 ABS NAVI from 2019

GEAR CHANGE MECHANISM

GEAR CHANGE MECHANISM

for Shiver 900 Euro 4 ABS NAVI from 2019

GEARBOX

GEARBOX

for Shiver 900 Euro 4 ABS NAVI from 2019

WATERPUMP

WATERPUMP

for Shiver 900 Euro 4 ABS NAVI from 2019

CLUTCH COVER

CLUTCH COVER

for Shiver 900 Euro 4 ABS NAVI from 2019

CLUTCH

CLUTCH

for Shiver 900 Euro 4 ABS NAVI from 2019

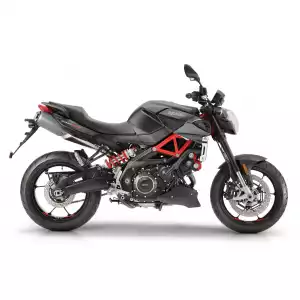

APRILIA Shiver 900 Euro 4 ABS NAVI 2019
