1
Engine displacement
900
2
Model
SHIVER
3
Year
2019
4
Trim
Shiver 900 Euro 4 ABS NAVI
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
CYLINDER HEAD COVER
by
PAD

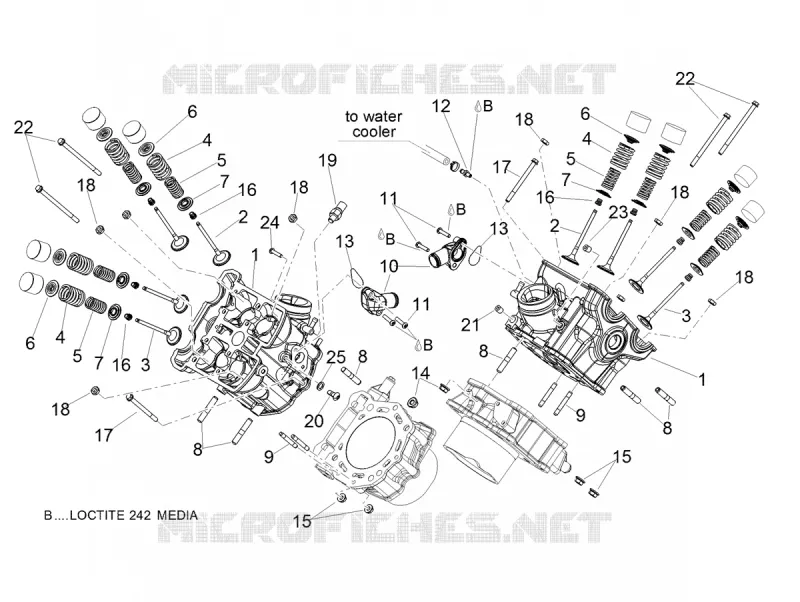

CYLINDER HEAD - VALVES
1
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
7
7
8
8
8
8
9
9
10
11
11
12
13
13
14
15
15
16
16
16
17
17
18
18
18
18
18
18
19
20
21
22
22
23
24
25
1
Tête cylindre
1A010521
$566,29 Unit Price incl. VAT
1
LH head assy with valve
1A008221
Not Available
2
Intake valve
846923
$7,16 Unit Price incl. VAT
3
Exhaust valve
873459
$28,33 Unit Price incl. VAT
4
Ext. valve spring
873005
$5,44 Unit Price incl. VAT
5
Int. valve spring
873006
$7,27 Unit Price incl. VAT
6
Upper cap
1A002802
$3,65 Unit Price incl. VAT
7
Lower cap
1A002803
$3,65 Unit Price incl. VAT
8
Stud bolt
1A003632R
$3,70 Unit Price incl. VAT
9
Stud bolt
872807
$2,16 Unit Price incl. VAT
10
Water hose union
1A008494
$17,07 Unit Price incl. VAT
11
Screw w/ flange
855799
$0,34 Unit Price incl. VAT
12
Joint
873396
$7,20 Unit Price incl. VAT
13
Gasket
878705
$0,63 Unit Price incl. VAT
14
Flanged nut M8x1,25
874557
$0,51 Unit Price incl. VAT
15
Flanged nut
874558
$0,09 Unit Price incl. VAT
16
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
17
Flanged hexagon screw
874556
$0,48 Unit Price incl. VAT
18
Nut M10x1,25
825694
$0,24 Unit Price incl. VAT
19
Temperature gauge
640485
Not Available
20
M6x12 button socket head cap screw
1A002952
$0,21 Unit Price incl. VAT
21
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
22
Screw w/ flange
872424
$3,70 Unit Price incl. VAT
23
Plug M10
1A009653
$1,68 Unit Price incl. VAT
24
Torx convex big end screw M5x16
1A003051
$1,01 Unit Price incl. VAT
25
Washer
847239
$0,55 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
