1
Engine displacement
1100
2
Model
RSV4
3
Year
2023
4
Trim
RSV4 1100 Euro 5 ABS
5
Parts Catalog
FUEL TANK
6
Parts Diagram
Parts Catalog
REAR MUDGUARD
by
SIDE FAIRINGS
FUEL TANK
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
29
30
1
Réservoir essence v.gris
2H004345000EQ
Not Available
1
FUEL TANK WITHOUT FUEL PROBE
2B008854
$832,01 Unit Price incl. VAT
2
Fuel pump cpl.
B043925
Not Available
3
Tuyau essence
2B007450
$30,60 Unit Price incl. VAT
4
Support
B044550
$10,76 Unit Price incl. VAT
5
Bride
2B007735
$2,49 Unit Price incl. VAT
6
Protection
2B008438
$14,68 Unit Price incl. VAT
7
Tuyau purge réser.
895959
$3,59 Unit Price incl. VAT
8
Détecteur
2D000517
$779,87 Unit Price incl. VAT
9
Patte
2B002985
$20,60 Unit Price incl. VAT
10
Vis
AP8224470
$0,34 Unit Price incl. VAT
11
Vis
GU98210612
$3,65 Unit Price incl. VAT
12
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
13
VIS
576836
$3,03 Unit Price incl. VAT
14
Entretoise
893273
$2,35 Unit Price incl. VAT
15
Caoutchouc
AP8120663
$9,24 Unit Price incl. VAT
16
Support Flanc G
858886
$2,10 Unit Price incl. VAT
17
VITE TBEI M5 X 10
AP8150538
$4,32 Unit Price incl. VAT
18
Clip
AP8102375
$0,69 Unit Price incl. VAT
19
Vis bride
AP8152339
$3,65 Unit Price incl. VAT
20
Joint torique
AP8120965
$3,65 Unit Price incl. VAT
21
Caoutchouc avec insert
2B001203
$10,00 Unit Price incl. VAT
22
Vis
AP8150403
$0,68 Unit Price incl. VAT
23
Rondelle spéciale
AP8150536
$10,76 Unit Price incl. VAT
24
Douille en "T"
2B006465
$10,42 Unit Price incl. VAT
25
Silentbloc
AP8101372
$4,62 Unit Price incl. VAT
26
Tampon
2B007824
$5,48 Unit Price incl. VAT
27
Collier
AP8101595
$0,32 Unit Price incl. VAT
28
Vis
2B002567
$0,25 Unit Price incl. VAT
29
Axe de fixation
AP8161127
$5,38 Unit Price incl. VAT
30
Rondelle
AP8150255
$0,16 Unit Price incl. VAT

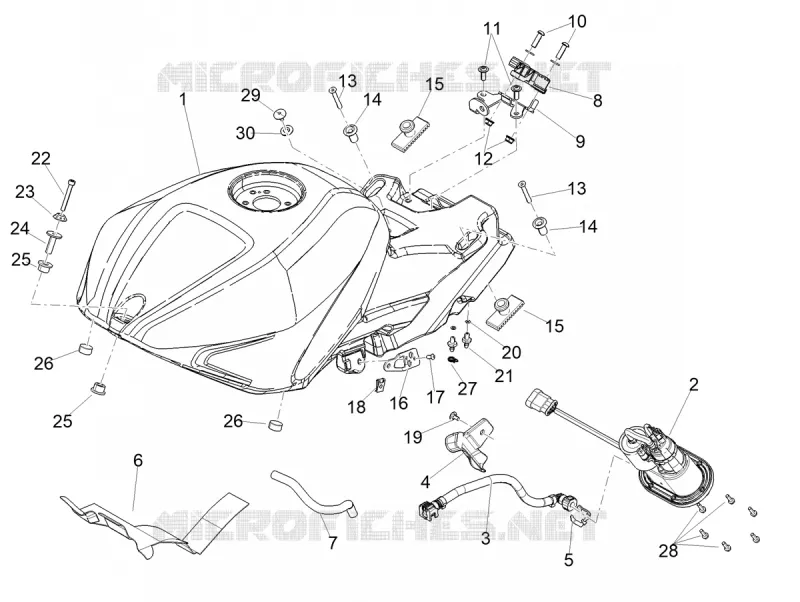

Find the detailed FUEL TANK APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
