1
Engine displacement
50
2
Model
MOJITO
3
Year
2001
4
Trim
Mojito Custom 2T (engine Aprilia)
5
Parts Catalog
USA lights
6
Parts Diagram
Parts Catalog
Lights
by
Electrical system
USA lights
1
2
3
4
4
4
4
5
6
7
7
8
8
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
1
R.support turn indicator
AP8134951
Not Available
2
Clignotant arrière gouche
AP8127503
$34,73 Unit Price incl. VAT
3
Rear RH turn indicator
AP8127504
$34,73 Unit Price incl. VAT
4
Vitre clignotant
AP8124889
$8,16 Unit Price incl. VAT
5
RH front turn indicator
AP8127500
Not Available
6
LH front turn indicator
AP8127501
Not Available
7
Vis bride
AP8152338
$3,65 Unit Price incl. VAT
8
Ecrou autofr. bas
AP8150451
$0,17 Unit Price incl. VAT
9
Calotte
AP8224237
$41,80 Unit Price incl. VAT
10
Self-tap screw 2,9x32
AP8152392
Not Available
11
Porte-plaque;
AP8149034
$17,83 Unit Price incl. VAT
12
Support porte-plaque
AP8234217
$33,81 Unit Price incl. VAT
13
Catadioptre arrière, rouge
AP8124718
$4,12 Unit Price incl. VAT
14
Rondelle
AP8150011
$0,25 Unit Price incl. VAT
15
Ecrou autofr. bas
AP8150204
$0,51 Unit Price incl. VAT
16
Vis bride
AP8152338
$3,65 Unit Price incl. VAT
17
Self-locking nut M5
AP8152306
$3,65 Unit Price incl. VAT
18
Headlight
AP8224532
Not Available
19
Light assembly
AP8124925
Not Available
20
Joint
AP8220553
$10,76 Unit Price incl. VAT
21
Bague chromée
AP8224236
Not Available
22
Headlight wiring w/harness
AP8124923
Not Available
23
Lamp HS1 35+35W 12V
AP8127113
Not Available
24
Taillight, chr.
AP8127277
Not Available
25
Taillight wiring harn.
AP8224565
Not Available
26
Taillight lens-usa-
AP8224566
Not Available
27
Verre lumière plaque rouge
AP8224567
$5,38 Unit Price incl. VAT
28
Feu de plaque;
AP8224169
$19,71 Unit Price incl. VAT
29
Vis bride
AP8152279
$0,51 Unit Price incl. VAT
30
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
31
Vis bride
AP8152277
$0,25 Unit Price incl. VAT
32
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT

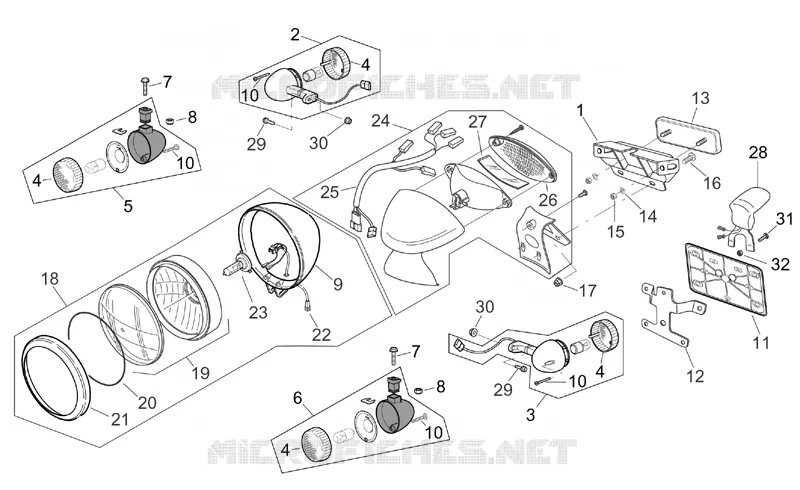

Find the detailed USA lights APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
