1
Engine displacement
50
2
Model
SXR
3
Year
2022
4
Trim
SXR 50 4T 3V HE New Comfort Euro 5
5
Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
OWNER'S MANUAL - TOOL KIT
by
FRONT BRAKE MASTER CYLINDER

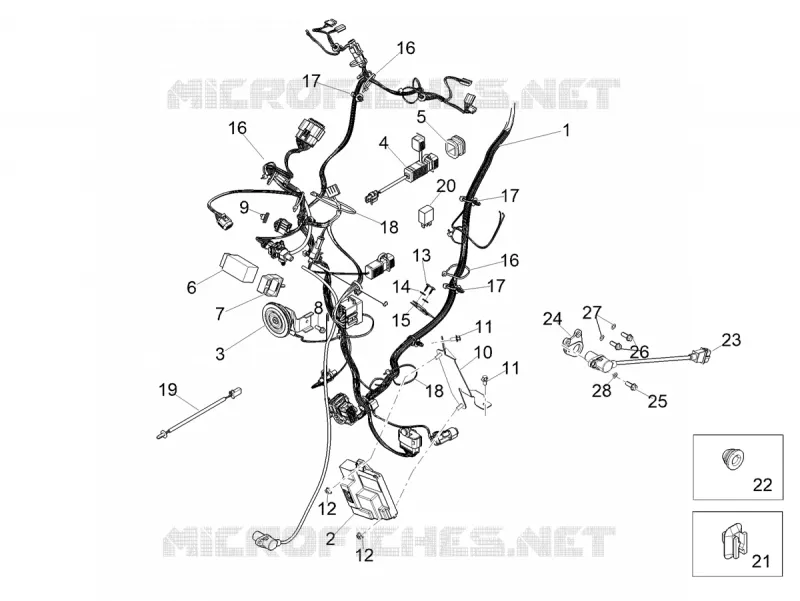

FRONT ELECTRICAL SYSTEM
28
27
26
25
24
23
22
5
4
3
2
1
21
20
19
18
18
17
17
17
16
16
16
15
14
13
12
12
11
11
10
9
8
7
6
1
Groupe câbles châssis
1D003341
$331,69 Unit Price incl. VAT
2
Centrale électronique
CM314208
$261,33 Unit Price incl. VAT
3
Klaxon 12 V cc
CM087614
$5,71 Unit Price incl. VAT
4
Prise USB
1D003456R
Not Available
5
Fairlead
1B001591
$1,56 Unit Price incl. VAT
6
Dispositif de commande des clignotants
1D003355
$35,94 Unit Price incl. VAT
7
Flexible support
291017
$4,88 Unit Price incl. VAT
8
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
9
Clip de connecteur
639560
$0,67 Unit Price incl. VAT
10
Staffa centralina con P.I.
1B007819
$3,45 Unit Price incl. VAT
11
Vis bride
435634
Not Available
12
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
13
Self tapping screw
297498
$0,08 Unit Price incl. VAT
14
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
15
Bride de boîte à fusibles
CM022808
$0,82 Unit Price incl. VAT
16
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
17
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
18
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
19
Capteur de température ambiante
1D003720R
$10,56 Unit Price incl. VAT
20
Micro-relais avec résistance 12V 30A/10A
1D001636
$6,14 Unit Price incl. VAT
21
Molletta
B005629
$0,84 Unit Price incl. VAT
22
Passe-câble
1B005386
$3,51 Unit Price incl. VAT
23
Capteur de vitesse
1D000074
Not Available
24
Staffa supporto sensore velocità
1C005268
$4,38 Unit Price incl. VAT
25
Vis M5x16
1C004839
$0,25 Unit Price incl. VAT
26
Hex socket screw M6x16
709099
$0,16 Unit Price incl. VAT
27
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
28
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
