1
Engine displacement
50
2
Model
MOJITO
3
Year
1999
4
Trim
Mojito Custom 2T (engine Aprilia)
5
Parts Catalog

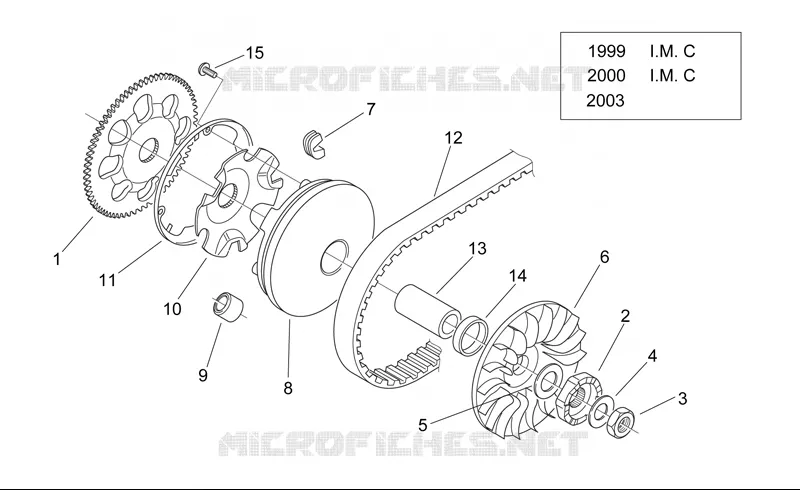

Variator II
6
Parts Diagram
Parts Catalog
Variator I
by
Reduction
Variator II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Starter motor gear
AP3QEA000031
Not Available
2
Toothed start clutch cup
AP3TDA000074
Not Available
3
Low nut m12x1,25
AP3TAN000060
Not Available
4
Belleville spring
AP4DHN000020
Not Available
5
Spacer 14,3x23x1
AP3TAN000172
$3,65 Unit Price incl. VAT
6
Fixed pulley
AP2MEA000424
Not Available
7
Slider
AP2MEA000421
$3,78 Unit Price incl. VAT
8
Pulley assy., driving
AP2MEA000419
Not Available
9
Pin roller 7,7g
AP2MEA000420
$8,51 Unit Price incl. VAT
10
Ramp plate
AP2MEA000422
Not Available
11
Pulley cover 0,5 mm
AP2MEA000423
$12,45 Unit Price incl. VAT
12
Vee-Belt
AP2MCA000014
$43,20 Unit Price incl. VAT
13
Bush
AP2MEN000189
$22,46 Unit Price incl. VAT
14
Spacer 3,5 mm
AP3MAN000198
Not Available
14
Spacer 4 mm
AP3MAN000087
$8,91 Unit Price incl. VAT
14
Spacer
AP3MAN000091
Not Available
15
screw
AP2MEN000187
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
