1
Engine displacement
50
2
Model
MOJITO
3
Year
2005
4
Trim
Mojito Custom 2T (engine Piaggio)
5
Parts Catalog
Clutch
6
Parts Diagram
Parts Catalog
Acc. - Windshields
by
Variator
Clutch
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
1
POULIE
CM100109
$257,85 Unit Price incl. VAT
2
ECROU SFERA
289519
$0,56 Unit Price incl. VAT
3
CIRCLIPS
006624
$2,99 Unit Price incl. VAT
4
DOUILLE
289952
$5,97 Unit Price incl. VAT
5
DEMI POULIE EX 4795525
4795526
$162,29 Unit Price incl. VAT
6
PIVOT
482766
$3,70 Unit Price incl. VAT
7
DEMI POULIE
827893
$94,53 Unit Price incl. VAT
8
BAGUE
289950
$9,17 Unit Price incl. VAT
9
JOINT
289840
$1,26 Unit Price incl. VAT
10
CUVETTE EX 436879
483443
$3,70 Unit Price incl. VAT
11
RESSORT
478028
$17,60 Unit Price incl. VAT
12
Rondelle d'ar
487935
$20,91 Unit Price incl. VAT
13
Centrifugal clutch assy
CM100203
Not Available
14
ECROU
289955
$8,58 Unit Price incl. VAT
15
TAMBOUR EMB EX.289936
289933
$43,84 Unit Price incl. VAT
16
ROULEMENT
82655R
$27,40 Unit Price incl. VAT

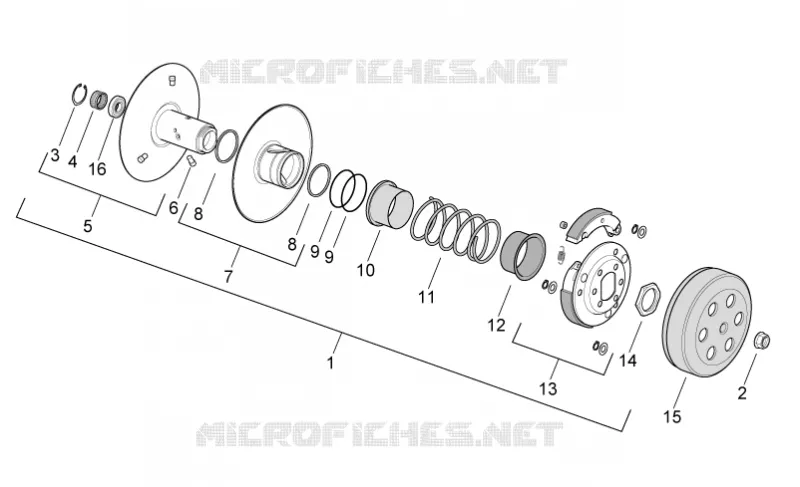

Find the detailed Clutch APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
