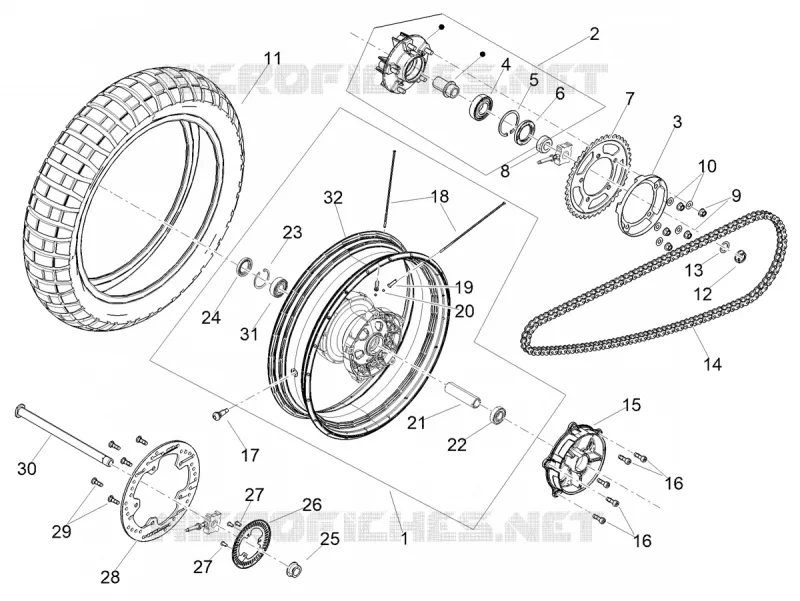

REAR WHEEL FOR Tuareg 660 Euro 5 ABS FROM 2022

REAR WHEEL

1

Roue arrière 4.25x18"

2B006433

$1 037,08 Unit Price incl. VAT

2

Porte-couronne cpl.

2B006613

$194,95 Unit Price incl. VAT

3

Protection de chaîne

2B009995

$31,28 Unit Price incl. VAT

4

Radial bearing

832848

$34,18 Unit Price incl. VAT

5

Snap ring

006662

$2,74 Unit Price incl. VAT

6

Bague d'étanchéité 40X62X7 NBR75

2B006559

$5,14 Unit Price incl. VAT

7

Couronne Z=42

CM306203

$77,16 Unit Price incl. VAT

8

Entretoise roue arrière

2B006283

$20,75 Unit Price incl. VAT

9

DAX nut M10x1,25

2B002634

$6,12 Unit Price incl. VAT

10

Rondelle plate

2B007292

$0,48 Unit Price incl. VAT

11

Pneu arrière 150/70 R18

2B008450

$740,09 Unit Price incl. VAT

12

Rear wheel spindle nut

648708

Not Available

13

Wheel pin washer

AP8125687

$0,42 Unit Price incl. VAT

14

Chain 120 mesh

2B009174

$210,19 Unit Price incl. VAT

15

Bride roue arrière

2B006428

$107,37 Unit Price incl. VAT

16

Vis TC 8x25

2B002171

$0,75 Unit Price incl. VAT

17

Tubeless tyre valve

AP8201546

$5,38 Unit Price incl. VAT

18

Rayon L 203

2B006432

$2,53 Unit Price incl. VAT

19

Nipples

2B007846

$1,66 Unit Price incl. VAT

20

Dowel

AP8150491

$0,16 Unit Price incl. VAT

21

Entretoise de roue

2B008141

$26,20 Unit Price incl. VAT

22

Roulement

2B007580

$34,18 Unit Price incl. VAT

23

Circlip

006647

$1,10 Unit Price incl. VAT

24

Gasket ring 30x47x7

AP8125841

$3,70 Unit Price incl. VAT

25

Entretoise roue arrière

2B006284

$19,44 Unit Price incl. VAT

26

Phonic wheel

2B008686

$33,26 Unit Price incl. VAT

27

Hex socket screw M6x12

AP8152186

$0,16 Unit Price incl. VAT

28

Disque frein arrière

2B006429

$65,33 Unit Price incl. VAT

29

Vis fix.

2B008877

$0,80 Unit Price incl. VAT

30

Goujon de la roue

2B006435

$84,95 Unit Price incl. VAT

31

Roulement à billes 20x47x14

2B007581

$34,18 Unit Price incl. VAT

32

Jante arrière 4.25x18"

2B006431

$478,82 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
