1
Engine displacement
125
2
Model
TUONO
3
Year
2023
4
Trim
Tuono 125 4T Euro 5 ABS
5
Parts Catalog

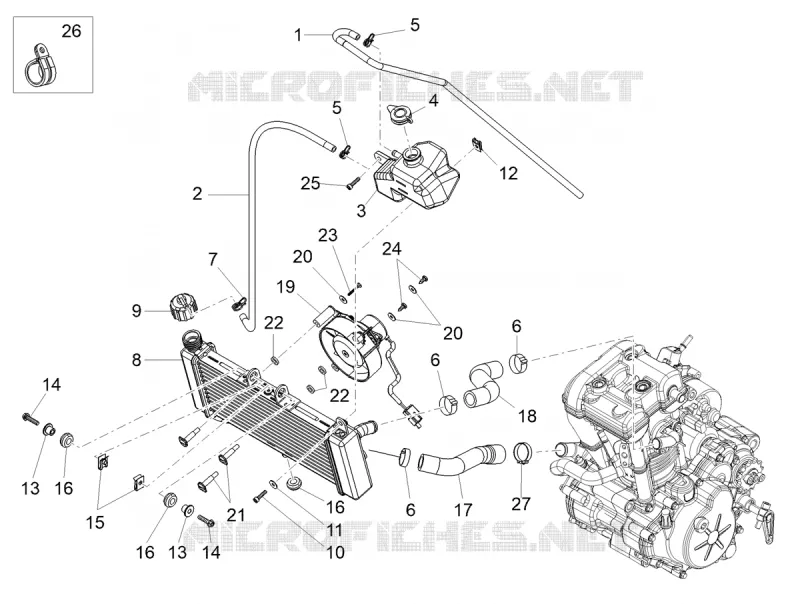

Cooling system
6
Parts Diagram
Parts Catalog
FRONT ELECTRICAL SYSTEM
by
FLYWHEEL COVER
Cooling system
10
3
2
1
27
26
25
24
23
22
22
21
20
20
19
18
17
16
16
16
15
14
14
13
13
12
11
9
8
7
6
6
6
5
5
4
1
Breather pipe
864510
$4,82 Unit Price incl. VAT
2
Exp.tnk-rad. Hose
864572
Not Available
3
Coolant tank
866136
Not Available
4
Cover
863943
Not Available
5
Hose clamp
00A00410501
Not Available
6
Hose clamp
CM269606
$3,65 Unit Price incl. VAT
7
Hose clamp
898060
$0,77 Unit Price incl. VAT
8
Water cooler
867334
Not Available
9
Cover
861299
Not Available
10
Hex socket screw M6x20
AP8150044
$3,65 Unit Price incl. VAT
11
Washer 6,6x18x1,6*
AP8150015
$0,16 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
T bush *
AP8121679
$1,26 Unit Price incl. VAT
14
Hex socket screw M6x30
AP8150220
$0,17 Unit Price incl. VAT
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
16
Grommet
00008915020
$0,67 Unit Price incl. VAT
17
Water cooler-pump tube
865655
Not Available
18
Water cooler-head tube
865654
Not Available
19
Electric fan
864049
Not Available
20
Washer
00H03800722
Not Available
21
Pin
AP8161118
$5,38 Unit Price incl. VAT
22
Washer
00003515370
$3,65 Unit Price incl. VAT
23
screw
864164
Not Available
24
screw
00011142500
Not Available
25
Screw w/ flange M5x16
AP8152298
$0,21 Unit Price incl. VAT
26
Hose clamp
893224
$1,92 Unit Price incl. VAT
27
Spring clamp 29/12
CM226909
$4,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
