Parts Catalog
FRONT ELECTRICAL SYSTEM
6
Parts Diagram
Parts Catalog
Cooling system
by
CENTRAL ELECTRICAL SYSTEM
FRONT ELECTRICAL SYSTEM
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Câblage principal
2D000600
$986,13 Unit Price incl. VAT
2
Régulateur de tension
1A012332
$178,03 Unit Price incl. VAT
3
Calculateur suspensions
2D000633
$1 585,53 Unit Price incl. VAT
4
Relais 12V/30A
AP8224462
$14,17 Unit Price incl. VAT
5
Bride de support de klaxon
2B008699
$11,17 Unit Price incl. VAT
6
Vis bride
2B005143
$0,42 Unit Price incl. VAT
7
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
8
Support
2B007836
$3,61 Unit Price incl. VAT
9
RESSORT
CM013201
$0,40 Unit Price incl. VAT
10
Vis
AP8152128
$0,34 Unit Price incl. VAT
11
Rondelle
AP8150179
$0,08 Unit Price incl. VAT
12
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
13
"Douille en ""T"""
AP8121075
$3,65 Unit Price incl. VAT
14
Support
890760
$0,51 Unit Price incl. VAT
15
Fixation
2D000348
$3,38 Unit Price incl. VAT
16
RESSORT
CM013203
$0,67 Unit Price incl. VAT
17
Joint
1D000129
$1,42 Unit Price incl. VAT
18
Klaxon
863339
$10,20 Unit Price incl. VAT
19
Vis
AP8152055
$3,65 Unit Price incl. VAT
20
Rondelle élastique courbe
AP8150376
$0,08 Unit Price incl. VAT
21
Caoutchouc
AP8220186
$0,62 Unit Price incl. VAT
22
Collier
AP8141017
$0,28 Unit Price incl. VAT
23
Support
2B006134
$1,70 Unit Price incl. VAT
24
Passe-câble
AP8221310
$4,98 Unit Price incl. VAT
25
Douille clignotants;
AP8121929
$8,01 Unit Price incl. VAT
26
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
27
ECROU
00G04401462
$1,10 Unit Price incl. VAT
28
RESSORT
CM013203
$0,67 Unit Price incl. VAT
29
Passe-câble
AP8221311
$5,38 Unit Price incl. VAT
30
Cablage
2D000476
$122,96 Unit Price incl. VAT

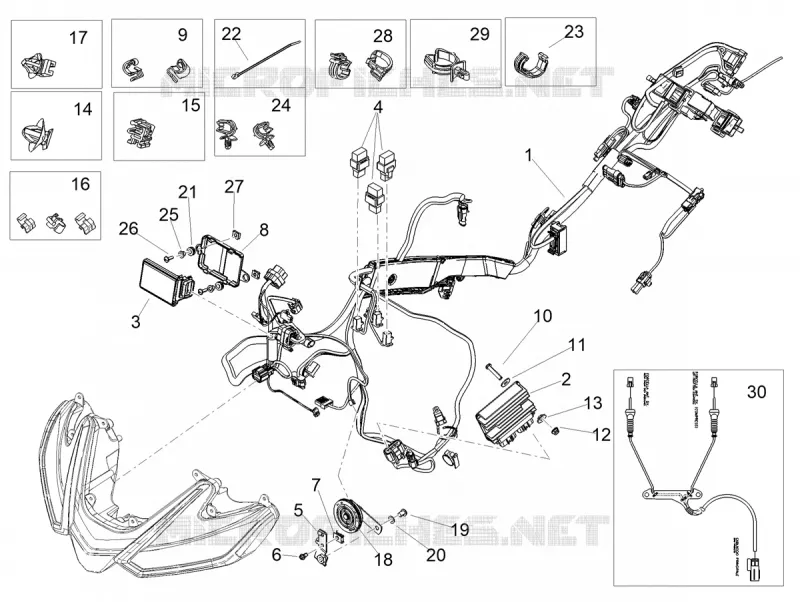

Find the detailed FRONT ELECTRICAL SYSTEM APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
