1
Engine displacement
1100
2
Model
TUONO
3
Year
2022
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog
FUEL EVAP SYSTEM
6

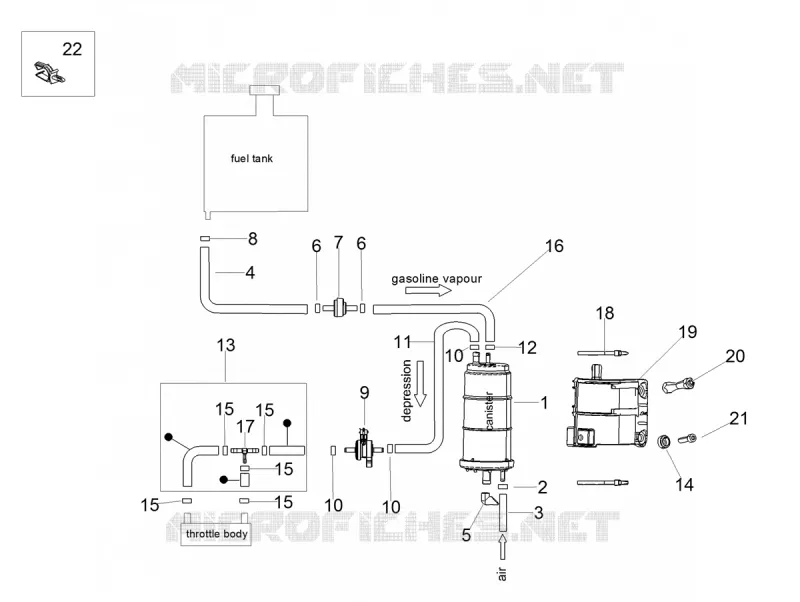

Parts Diagram
Parts Catalog
FUEL TANK
by
OIL COOLER
FUEL EVAP SYSTEM
22
21
20
19
18
17
16
15
15
15
15
15
14
13
12
11
10
10
10
9
8
7
6
6
5
4
3
2
1
1
Canister
2B002632
$30,77 Unit Price incl. VAT
2
Hose clamp
AP8102520
$0,26 Unit Price incl. VAT
3
Fuel pipe 8x13
890499
$4,46 Unit Price incl. VAT
4
pipe SAE 30 d.12,7x6,35
856063
$41,29 Unit Price incl. VAT
5
Ventilation plug
AP8127601
$3,70 Unit Price incl. VAT
6
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
7
Pressure valve
AP8104614
$75,62 Unit Price incl. VAT
8
Hose clip, green D11x6,6x1
AP8120446
$0,75 Unit Price incl. VAT
9
Vanne de purge
2B0077435
$35,21 Unit Price incl. VAT
10
Hose clamp 12,5x8
AP8102239
$0,84 Unit Price incl. VAT
11
Tuyau sae j30 3/16"
2B007742
$35,39 Unit Price incl. VAT
12
Hose clamp
AP8102738
$1,42 Unit Price incl. VAT
13
Ensemble tuyau shed
2B007544
$60,15 Unit Price incl. VAT
14
Bush
2B003714
$3,65 Unit Price incl. VAT
15
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
16
Hose SAE 30 R12A-3/16"
2B003691
$39,97 Unit Price incl. VAT
17
3-way union
AP8104666
$4,98 Unit Price incl. VAT
18
Black hose
AP8141017
$0,28 Unit Price incl. VAT
19
Support bracket
2B003441
$10,76 Unit Price incl. VAT
20
Entretoise
2B008110
$10,12 Unit Price incl. VAT
21
Hex socket screw M6x20
AP8150044
$3,65 Unit Price incl. VAT
22
Fairlead d18
AP8221311
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
