1
Engine displacement
1100
2
Model
TUONO
3
Year
2021
4
Trim
Tuono V4 Factory 1100 Euro 5 Superpole ABS
5
Parts Catalog

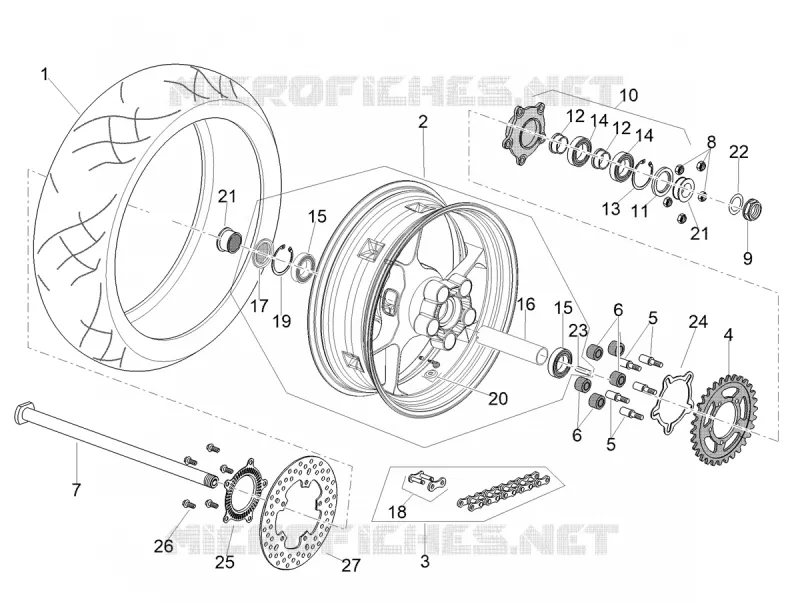

REAR WHEEL
6
Parts Diagram
Parts Catalog
Front wheel
by
FRONT BRAKE MASTER CYLINDER
REAR WHEEL
5
5
4
27
26
25
24
23
22
21
21
20
19
18
17
16
15
15
14
14
13
12
12
11
10
9
8
7
6
6
3
2
1
1
Pneu arrière
2B006863
$1 027,17 Unit Price incl. VAT
2
ROUE AR. 6.00"X17" ROUGE
2B002118
$1 680,75 Unit Price incl. VAT
3
Chaîne
896358
$206,19 Unit Price incl. VAT
4
Couronne
CM224903
$120,49 Unit Price incl. VAT
5
Pivot
2B002611
$9,41 Unit Price incl. VAT
6
Caoutchouc antidéchirures
B043317
$8,65 Unit Price incl. VAT
7
Rear wheel spindle
858731
Not Available
8
Ecrou
2B002634
$6,12 Unit Price incl. VAT
9
Ecrou de roue
AP8152324
$7,30 Unit Price incl. VAT
10
Crown holder cpl.
AP8125730
Not Available
11
Bague d'étanchéité
AP8121213
$8,01 Unit Price incl. VAT
12
Entretoise joint élast.
AP8125732
$29,76 Unit Price incl. VAT
13
Bague seeger pour orifice
AP8121212
$7,81 Unit Price incl. VAT
14
Roulement
AP8110081
$16,34 Unit Price incl. VAT
15
Roulement
AP8110093
$15,98 Unit Price incl. VAT
16
Entretoise interne
AP8128170
$36,58 Unit Price incl. VAT
17
Bague d'étanchéité
AP8125838
$8,01 Unit Price incl. VAT
18
Maillon de jonction
859754
$8,40 Unit Price incl. VAT
19
Anneau élastique
AP8125839
$8,01 Unit Price incl. VAT
20
Soupape tubeless
AP8101744
$6,30 Unit Price incl. VAT
21
Entretoise roue arrière
AP8121592
$15,31 Unit Price incl. VAT
22
Rondelle
AP8152323
$3,70 Unit Price incl. VAT
23
Goupille
AP8150463
$3,65 Unit Price incl. VAT
24
Bride
2B003043
$86,99 Unit Price incl. VAT
25
Roue phonique ABS
2B008446
$14,28 Unit Price incl. VAT
26
Vis
2B002416
$0,51 Unit Price incl. VAT
27
Disque frein arrière
85248R
$109,35 Unit Price incl. VAT

Find the detailed REAR WHEEL APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
