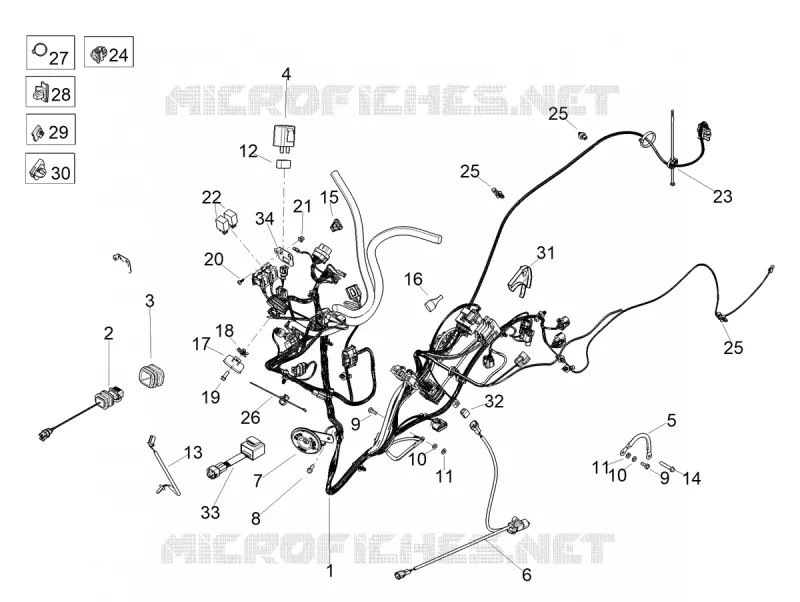

FRONT ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
26
27
28
29
30
31
32
33
34
1
Câblage principal
1D003709
$584,80 Unit Price incl. VAT
2
Prise USB
1D003456R
Not Available
3
Fairlead
1B001591
$1,56 Unit Price incl. VAT
4
Dispositif de commande des clignotants
1D003639
$62,04 Unit Price incl. VAT
5
Gaine de masse
581309
$3,49 Unit Price incl. VAT
6
Stand button
642559
Not Available
7
Klaxon
CM071821
$23,54 Unit Price incl. VAT
8
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
9
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
10
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
11
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
12
Flexible support
291017
$4,88 Unit Price incl. VAT
13
Ambient temperature sensor
581142
Not Available
14
Vis M6x35
1A000348
$2,25 Unit Price incl. VAT
15
Bouton d'ouverture de la selle
1D003690
$5,13 Unit Price incl. VAT
16
Gaine L=70
CM0074F9
$0,58 Unit Price incl. VAT
17
Bouchon
1D002621
$2,36 Unit Price incl. VAT
18
Spring plate M6
254485
$0,34 Unit Price incl. VAT
19
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
20
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
21
Expansion plug
157716
$0,08 Unit Price incl. VAT
22
Micro-relais avec résistance 12V 30A/10A
1D001636
$6,14 Unit Price incl. VAT
23
Collier
1D003458
$2,04 Unit Price incl. VAT
24
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
25
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
26
Collier
1D002511
$3,65 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
28
Clip de connecteur
639560
$0,67 Unit Price incl. VAT
29
Spring for connector
641769
$2,27 Unit Price incl. VAT
30
Ressort connecteurs
1D000129
$1,42 Unit Price incl. VAT
31
Support câblage
1B009557
$2,03 Unit Price incl. VAT
32
Support instruments
1D001098
$4,00 Unit Price incl. VAT
33
Speed ​​signal interface device
1D003676
$31,59 Unit Price incl. VAT
34
Bride de relais
CM022807
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
