1
Engine displacement
50
2
Model
MOJITO
3
Year
1999
4
Trim
Mojito Retro 2T (engine Aprilia)
5
Parts Catalog

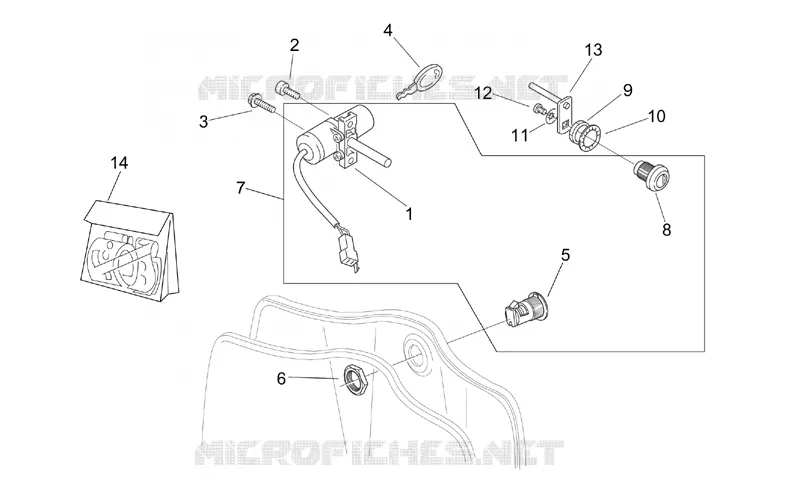

Decal and Lock hardware kit
6
Parts Diagram
Parts Catalog
Electrical system
by
Plate set and handbook
Decal and Lock hardware kit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Main switch - steering lock
AP8224081
Not Available
2
Shear rivet M6x17
AP8152140
$3,65 Unit Price incl. VAT
3
Screw w/ flange M6x16
AP8152278
$1,77 Unit Price incl. VAT
4
Aprilia milled key
AP8102880
Not Available
5
Front box lock
AP8201734
Not Available
6
Lock nut M22x1,5
AP8102523
$8,01 Unit Price incl. VAT
7
Lock kit
AP8202149
Not Available
8
Top box lock
AP8202169
$26,65 Unit Price incl. VAT
9
Low nut M19x1*
AP8152194
$1,10 Unit Price incl. VAT
10
Nickel plated lock washer *
AP8201305
Not Available
11
Washer
AP8201748
$0,14 Unit Price incl. VAT
12
Screw M4x6
AP8201749
$0,16 Unit Price incl. VAT
13
Saddle lockup lever
AP8202167
Not Available
14
Decal set, Habana
AP8267299
Not Available
14
Decal set, Mojito
AP8177040
$236,25 Unit Price incl. VAT
14
Decal set, Habana
AP8257692
Not Available
14
Decal set, Mojito
AP8277063
Not Available
14
Decal set, Compay
AP8267614
Not Available
14
Decal set, Habana
AP8257616
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
