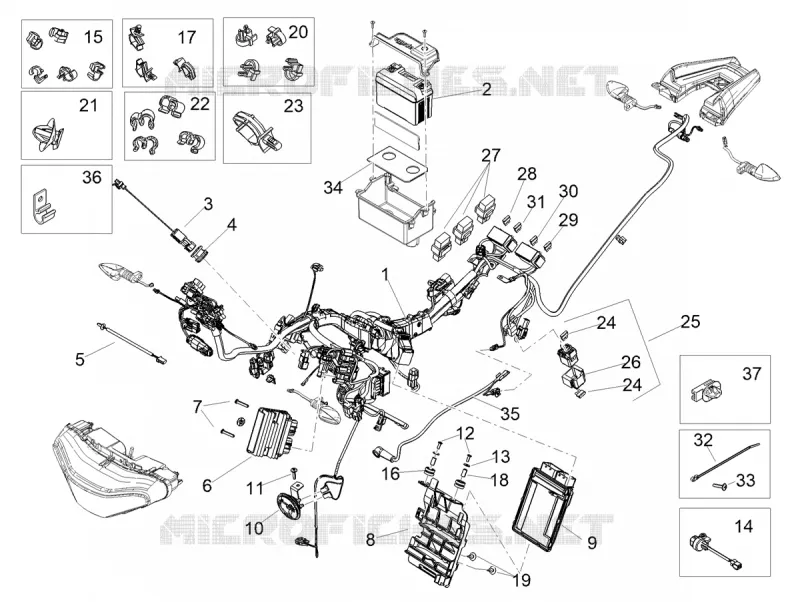

FRONT ELECTRICAL SYSTEM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
Câblage principal
2D000684
$1 068,70 Unit Price incl. VAT
2
Batterie au lithium
2D000579
$664,86 Unit Price incl. VAT
3
Prise USB
1D003323
$29,70 Unit Price incl. VAT
4
Fairlead
1B001591
$1,56 Unit Price incl. VAT
5
Ambient temperature sensor
581142
Not Available
6
Régulateur de tension
1A012332
$178,03 Unit Price incl. VAT
7
Screw w/ flange M6x20
AP8152279
$0,51 Unit Price incl. VAT
8
Support
2B009039
$17,79 Unit Price incl. VAT
9
Centrale électronique
CM3018104
Not Available
9
Centrale électronique
CM3018387
Not Available
10
Horn
854830
$20,00 Unit Price incl. VAT
11
Screw w/ flange M6x12
AP8152277
$0,25 Unit Price incl. VAT
12
Vite TBEI M6x25
AP8152117
$0,25 Unit Price incl. VAT
13
Washer 6,4x15x1
AP8152181
$0,07 Unit Price incl. VAT
14
Fall sensor
642248
$40,95 Unit Price incl. VAT
15
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
16
Rubber spacer
AP8220150
$1,42 Unit Price incl. VAT
17
Cable-guide
AP8221310
$4,98 Unit Price incl. VAT
18
Spacer
AP8221017
$3,65 Unit Price incl. VAT
19
Rubber spacer
AP8120001
$0,77 Unit Price incl. VAT
20
Hose clamp
668762
$3,38 Unit Price incl. VAT
21
Instrument support
890760
$0,51 Unit Price incl. VAT
22
Fairlead
894704
$0,42 Unit Price incl. VAT
23
Fairlead d18
AP8221311
$5,38 Unit Price incl. VAT
24
Fuse 30A
581440
Not Available
25
Starter relay
582690
$27,87 Unit Price incl. VAT
26
Flexible support
582906
Not Available
27
Relay 12V-30A
AP8224462
$14,17 Unit Price incl. VAT
28
Fuse 5A
CM225605
$9,00 Unit Price incl. VAT
29
Fusible 20A
CM225620
$0,92 Unit Price incl. VAT
30
Fuse 7,5A
CM225607
$2,60 Unit Price incl. VAT
31
Fuse 15A
CM225615
$5,62 Unit Price incl. VAT
32
Collier
2D000676
$3,84 Unit Price incl. VAT
33
Phillips screw, SWP M5x20
AP8152329
$0,69 Unit Price incl. VAT
34
Battery support pad
2B009593
$1,87 Unit Price incl. VAT
35
Câblage démarreur
2D000685
$21,10 Unit Price incl. VAT
36
Passe-câble
2D000741
$1,66 Unit Price incl. VAT
37
Ressort connecteurs
1D000129
$1,42 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
