Variator II ('99-2001 I.M. C) for APRILIA Mojito Retro 2T (engine Aprilia) from 2000

Variator II ('99-2001 I.M. C)

1

Starter motor gear

AP3QEA000031

Not Available

2

Toothed start clutch cup

AP3TDA000074

Not Available

3

Low nut m12x1,25

AP3TAN000060

Not Available

4

Belleville spring

AP4DHN000020

Not Available

5

Entretoise

AP3TAN000172

$3,65 Unit Price incl. VAT

6

Fixed pulley

AP2MEA000424

Not Available

7

Slider

AP2MEA000421

$3,78 Unit Price incl. VAT

8

Pulley assy., driving

AP2MEA000419

Not Available

9

Pin roller 7,7g

AP2MEA000420

$8,51 Unit Price incl. VAT

10

Ramp plate

AP2MEA000422

Not Available

11

Couvercle poulie

AP2MEA000423

$12,45 Unit Price incl. VAT

12

Courroie de transmission;

AP2MCA000014

$43,20 Unit Price incl. VAT

13

Douille

AP2MEN000189

$22,46 Unit Price incl. VAT

14

Spacer 3,5 mm

AP3MAN000198

Not Available

14

Spacer 4 mm

AP3MAN000087

$8,91 Unit Price incl. VAT

14

Spacer

AP3MAN000091

Not Available

15

Vis

AP2MEN000187

$3,65 Unit Price incl. VAT

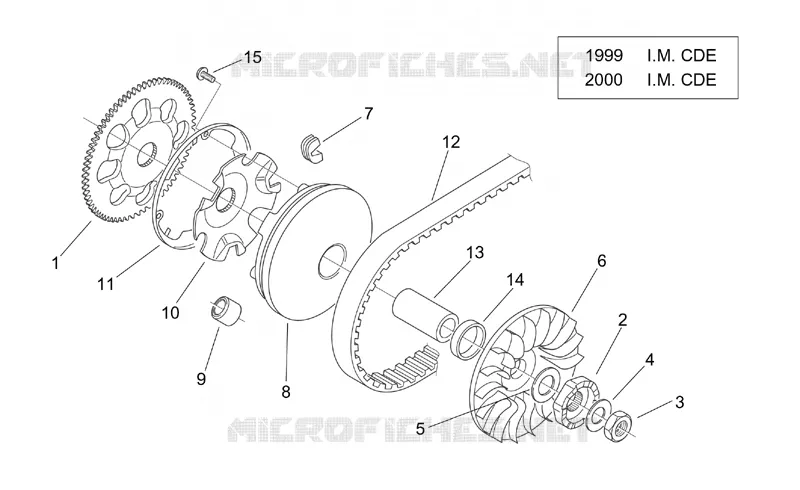

Find the detailed Variator II ('99-2001 I.M. C) APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
