1
Engine displacement
1100
2
Model
RSV4
3
Year
2023
4
Trim
RSV4 1100 Factory E5 ABS
5
Parts Catalog
REAR FAIRINGS
6
Parts Diagram
Parts Catalog
FRONT FENDER - LOWER FAIRING
by
Cylinder head cover
REAR FAIRINGS
1
1
1
2
2
2
3
4
5
5
5
6
6
6
7
8
9
10
10
10
10
11
12
13
14
14
15
15
16
17
18
19
20
1
Bavette D
2B006976
$41,77 Unit Price incl. VAT
1
Bavette arrière D v.noir Compétition
2B006976000NV
$181,54 Unit Price incl. VAT
1
Queue D, blanc
2B006976000Q4
$142,17 Unit Price incl. VAT
2
Bavette arrière G v.noir Compétition
2B006977000NV
$150,02 Unit Price incl. VAT
2
Bavette G
2B006977
$41,77 Unit Price incl. VAT
2
Queue G, blanc
2B006977000Q4
$142,17 Unit Price incl. VAT
3
Coque avant support de plaque d'immatric
2B007178
$98,27 Unit Price incl. VAT
4
Fermeture couvre-selle
2B008124
$12,21 Unit Price incl. VAT
5
Base couvre-selle
2B006996000NV
$112,89 Unit Price incl. VAT
5
Base couvre-selle
2B006996000XN2
$90,98 Unit Price incl. VAT
5
Base couvre-selle
2B006996
$27,54 Unit Price incl. VAT
6
Couvre-Selle
2B006997
$62,95 Unit Price incl. VAT
6
Couvre-selle, noir
2B006997000XN2
$113,60 Unit Price incl. VAT
6
Couvre-selle v.
2B006997000NV
$106,86 Unit Price incl. VAT
7
Blocage support plaque d'immatriculation
2B006641
$6,75 Unit Price incl. VAT
8
VIS
CM179301
$0,25 Unit Price incl. VAT
9
VIS
CM179201
$0,34 Unit Price incl. VAT
10
Vis bride
AP8152298
$0,21 Unit Price incl. VAT
11
"Douille en ""T"""
AP8221349
$2,95 Unit Price incl. VAT
12
Ecrou autobloqu.
AP8152299
$0,34 Unit Price incl. VAT
13
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
14
Vis
896174
$0,34 Unit Price incl. VAT
15
Screw w/ flange M5x12
AP8152302
Not Available
16
Vis
AP8121184
$3,70 Unit Price incl. VAT
17
Pivot fixation
893259
$1,41 Unit Price incl. VAT
18
Rondelle élastique courbe
AP8150272
$3,65 Unit Price incl. VAT
19
Biadhesive
2B008842
$8,35 Unit Price incl. VAT
20
Caoutchouc avant latéral;
AP8144087
$5,38 Unit Price incl. VAT

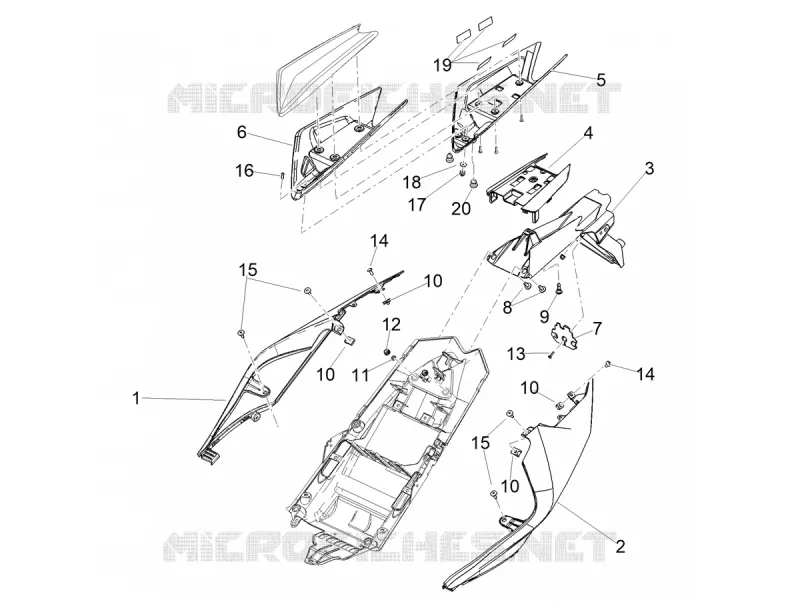

Find the detailed REAR FAIRINGS APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
