Front fork III for APRILIA NA Mana from 2007

Front fork III

1

RH hub cpl.

898678

$470,43 Unit Price incl. VAT

2

LH hub cpl.

898679

$470,43 Unit Price incl. VAT

3

Sleeve

896582

$208,17 Unit Price incl. VAT

4

Spring

898514

$40,51 Unit Price incl. VAT

5

Sleeve plug cpl.

898515

$37,31 Unit Price incl. VAT

6

O-ring

897335

$26,92 Unit Price incl. VAT

7

Circlip DX

898522

$5,06 Unit Price incl. VAT

8

Nut

898797

Not Available

9

LH plunger, complete

896579

Not Available

10

RH plunger, complete

896580

Not Available

11

Preload tube

896581

$10,80 Unit Price incl. VAT

12

Washer

897336

$5,73 Unit Price incl. VAT

13

Dust cover

897337

$23,27 Unit Price incl. VAT

14

Spring guide bush

897341

$17,06 Unit Price incl. VAT

15

Hub+LH fork leg

896583

$282,94 Unit Price incl. VAT

16

Hub+RH fork leg

896584

$282,94 Unit Price incl. VAT

17

Screw w/ flange

AP8152293

$3,70 Unit Price incl. VAT

18

Screw w/ flange M5x15

AP8152273

$0,16 Unit Price incl. VAT

19

Hex socket screw

AP8150298

$3,65 Unit Price incl. VAT

20

Fairlead

859777

$1,01 Unit Price incl. VAT

21

Front plate

856557

$2,92 Unit Price incl. VAT

22

Self-locking nut M5

AP8152306

$3,65 Unit Price incl. VAT

23

Sensor ABS

859792

Not Available

24

Screw M4x6

AP8201749

$0,16 Unit Price incl. VAT

25

Bush

897342

$20,45 Unit Price incl. VAT

26

Special washer

897343

$7,75 Unit Price incl. VAT

27

Oil seal

897344

$24,96 Unit Price incl. VAT

28

Circlip

897339

$45,71 Unit Price incl. VAT

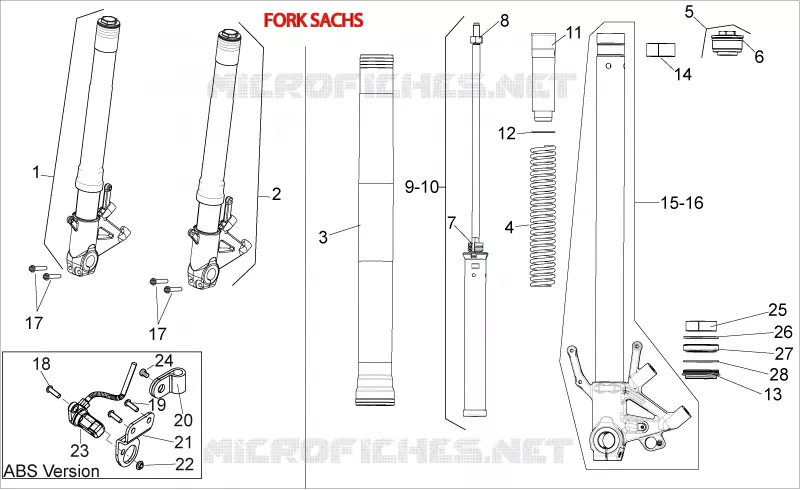

Find the detailed Front fork III APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
