Engine FOR NA Mana GT FROM 2015

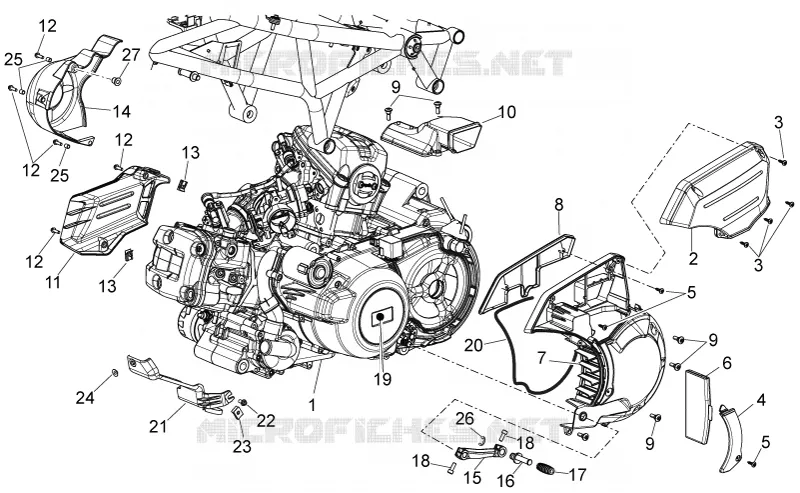

Engine

1

Engine cpl. 850 cc

8801315

Not Available

1

Engine cpl. 850 cc

8764605

Not Available

1

Engine cpl. 850 cc

8764505

Not Available

1

Engine cpl. 850 cc

8801305

Not Available

2

Conveyor cover

872642

Not Available

3

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

4

Filter cover Silver Lake

87264300XEA

$67,63 Unit Price incl. VAT

4

Filter cover Silver Lake

87264300XN6

$63,18 Unit Price incl. VAT

5

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

6

Filtering element

849957

Not Available

7

Air duct Silver Lake

85812600XEA

Not Available

7

Air duct, black

85812600XN6

$148,33 Unit Price incl. VAT

8

Filter

872644

$10,08 Unit Price incl. VAT

9

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

10

Air duct

873415

$11,39 Unit Price incl. VAT

11

Flywheel cover

854511

$5,73 Unit Price incl. VAT

12

Screw w/ flange M5x15

AP8152273

$0,16 Unit Price incl. VAT

13

Clip M5

AP8102375

$0,69 Unit Price incl. VAT

14

Sprocket cover, grey

85189000XEF

$196,73 Unit Price incl. VAT

14

Sprocket cover, grey

85189000XN6

$196,73 Unit Price incl. VAT

15

Gear lever

851843

$48,82 Unit Price incl. VAT

16

Brake lever pin

AP8121221

$17,15 Unit Price incl. VAT

17

Lever rubber

AP8120912

$1,42 Unit Price incl. VAT

18

Hex socket screw M6x16

AP8150137

$3,70 Unit Price incl. VAT

19

Name plate APRILIA

856667

$2,25 Unit Price incl. VAT

20

Gasket

871607

$1,60 Unit Price incl. VAT

21

Guard

856921

$7,45 Unit Price incl. VAT

22

Screw w/ flange M6x12

AP8152277

$0,25 Unit Price incl. VAT

23

Spring plate M6

254485

$0,34 Unit Price incl. VAT

24

Bush

AP8121032

$0,59 Unit Price incl. VAT

25

Bushing 5,3x8x7,1

AP8221036

$0,27 Unit Price incl. VAT

26

Circlip d9

AP8150462

$0,67 Unit Price incl. VAT

27

Bush

851946

$1,54 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
