1
Engine displacement
125
2
Model
PEGASO
3
Year
1994
4
Trim
PEGASO
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Electrical system
by
Front wheel

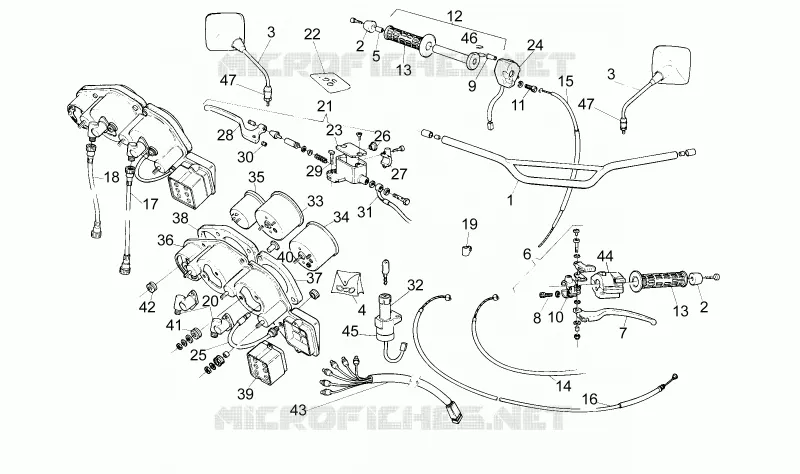

Handlebar - Controls
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
47
1
Handlebar
AP8118359
Not Available
2
H.bars anti.v weight
AP8102297
Not Available
3
Rearview mirror
AP8102166
Not Available
4
Lock kit
AP8102597
Not Available
5
Spacer
AP8120253
$3,65 Unit Price incl. VAT
6
Clutch control complete
AP8118235
Not Available
6
Clutch control complete
AP8118214
Not Available
7
Clutch lever
AP8118311
Not Available
8
Clutch lever adjuster
AP8118328
Not Available
9
Bellows
AP8118333
Not Available
10
Clutch lever U-bolt
AP8118313
Not Available
11
Throttle cable adjuster
AP8118332
Not Available
12
Throttle+hand grip, black
AP8118302
Not Available
13
Handgrip - pair
AP8118329
Not Available
14
Clutch cable
AP8114265
Not Available
14
Clutch cable
AP8114107
Not Available
15
Throttle cable
AP8114231
Not Available
15
Throttle cable
AP8114264
Not Available
16
Choke cable
AP8114165
Not Available
17
Odometer cable
AP8114232
Not Available
18
Tachometer cable
AP8114185
Not Available
18
Tachometer cable
AP8114263
Not Available
19
Brake hose hanger
AP8134167
$1,49 Unit Price incl. VAT
20
Dashboard gear
AP8102218
Not Available
21
Front master cilinder d.12
AP8113447
Not Available
22
Gasket set pump d.12
AP8113454
Not Available
23
Tank cover
AP8230240
Not Available
24
Engine stop-start device
AP8118271
Not Available
25
Cable adjuster
AP8112670
Not Available
26
Master cyl.level window
AP8113414
Not Available
27
U-bolt
AP8105153
Not Available
28
Front brake lever
AP8218074
Not Available
29
Brake lever pin
AP8113413
$10,76 Unit Price incl. VAT
30
Pad
AP8113273
Not Available
31
Front brake hose
AP8113452
Not Available
32
Main switch - steering lock
AP8112710
Not Available
33
Speedometer d.80
AP8112727
Not Available
34
Tachometer d.80
AP8112606
Not Available
35
Thermometer d.52
AP8112608
Not Available
36
Dashboard lower support
AP8102505
Not Available
37
Speedometer sponge
AP8112592
Not Available
38
Tachometer sponge
AP8112593
Not Available
39
Indicator light box
AP8112675
Not Available
40
Vib.damper fixing pin
AP8112601
Not Available
41
Rubber spacer *
AP8112599
Not Available
42
Rubber spacer
AP8112600
$4,49 Unit Price incl. VAT
43
Dashboard cable
AP8112610
Not Available
44
LH lights sel. w/wiring
AP8112330
Not Available
45
Commutator wiring
AP8112802
Not Available
46
Cover
AP8118331
Not Available
47
Mirror ball joint
AP8201462
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
