Engine displacement
650
2
Model
PEGASO
3
Year
1996
4
Trim
PEGASO
5
Parts Catalog
Drive shaft - Cylinder - Piston N>S
6
Parts Diagram
Parts Catalog
Clutch cover N>S
by
Clutch cover T
Drive shaft - Cylinder - Piston N>S
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
36
36
36
37
38
39
39
41
1
Crankshaft cpl.
AP0294375
Not Available
2
Pin 8x24
AP0429150
Not Available
3
Balance shaft driven gear
AP0294470
Not Available
4
Spring 16,9
AP0239015
$4,82 Unit Price incl. VAT
5
Transmission key 4x5
AP0246570
Not Available
6
Ball bearing
AP0832235
Not Available
7
Washer 2,25 mm
AP0244977
Not Available
7
Washer 1,75 mm
AP0244975
Not Available
7
Washer 2 mm
AP0244976
Not Available
8
Ball bearing
AP0432122
Not Available
9
Washer
AP0244082
Not Available
10
Timing system gear
AP0294483
Not Available
11
Clutch drum
AP0294400
Not Available
12
Break washer a22
AP0945759
$5,20 Unit Price incl. VAT
13
Nut m22x1,5
AP0842230
$18,12 Unit Price incl. VAT
14
Balance shaft Z=11
AP0237990
Not Available
15
Thrust washer 24,3/41/1,5
AP0227542
Not Available
16
Thrust washer 0,5 mm
AP0944462
Not Available
16
Thrust washer 20,5x30 sp.03mm
AP0944461
Not Available
17
Roller bearing
AP0232280
Not Available
18
Cylinder with piston
AP0223517
Not Available
18
Cylinder with piston
AP0223515
Not Available
19
Piston assy 99,97
AP0294280
Not Available
20
Conical ring
AP0215600
Not Available
21
Ring
AP0215610
Not Available
22
Oil scraper ring
AP0215620
Not Available
23
Piston pin
AP0216180
Not Available
24
Stop ring
AP0245700
Not Available
25
Hose clip 23,5
AP0251020
$4,82 Unit Price incl. VAT
26
Gasket
AP0230590
Not Available
27
Nut
AP0242851
$3,65 Unit Price incl. VAT
28
Hex socket screw M6x30
AP0840880
$3,65 Unit Price incl. VAT
29
Break washer a6
AP0945751
Not Available
30
Stud bolt m10x117
AP0240705
$9,41 Unit Price incl. VAT
31
Stud bolt M10x78
AP0240545
$7,94 Unit Price incl. VAT
32
Pin 5x10
AP0929650
Not Available
33
Hose clamp
AP0251875
Not Available
34
Water pipe
AP0222280
Not Available
35
Connecting rod
AP0294379
Not Available
36
Loctite Anti Seize 50ml.15378
AP0297434
Not Available
37
Loctite (violet) 221 10cc.
AP0899785
Not Available
38
Molykote G-N 50gr.
AP0297433
Not Available
39
Loctite (orange) 574
AP0899784
Not Available
41
Rubber spacer
AP0260310
Not Available
42
O-ring 23,3x2,4
AP0430782
$5,90 Unit Price incl. VAT
43
Cover m24x1
AP0241370
Not Available

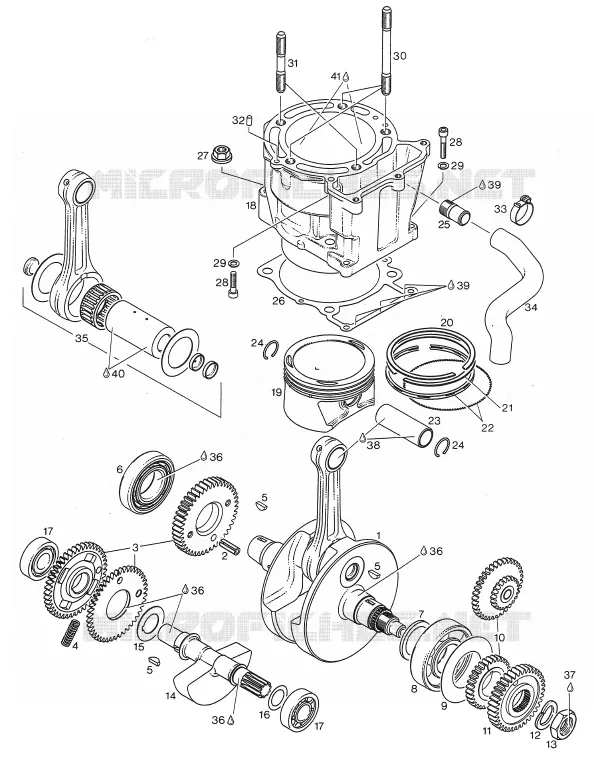

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
