1
Engine displacement
650
2
Model
PEGASO
3
Year
1993
4
Trim
PEGASO
5
Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Body
by
Carburettor
Rear wheel
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
26
27
28
29
30
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
Rear wheel
AP8108663
Not Available
1
Rear wheel
AP8108577
Not Available
2
Rear clutch
AP8125594
Not Available
3
Rear wheel spacer
AP8125442
$10,95 Unit Price incl. VAT
4
Hub bearing D17x40x12
AP8110045
$9,18 Unit Price incl. VAT
5
Internal spacer
AP8125427
$6,60 Unit Price incl. VAT
6
Flexible coupling rubber
AP8125679
Not Available
7
Spacer
AP8125425
$12,36 Unit Price incl. VAT
8
Outside spacer
AP8125423
$8,01 Unit Price incl. VAT
9
Crown holder
AP8125563
$431,44 Unit Price incl. VAT
10
Spring drive bearing
AP8110050
$27,67 Unit Price incl. VAT
11
Rear wheel spindle
AP8125399
Not Available
11
Rear wheel spindle
AP8125649
$92,37 Unit Price incl. VAT
12
Chain ring Z=47
AP8107069
Not Available
13
Rear brake disc
AP8113237
Not Available
13
Rear brake disc
AP8113628
Not Available
14
Rear wheel 17"
AP8108657
Not Available
14
Wheel D17"
AP8108471
Not Available
15
Spoke 3,5
AP8108266
Not Available
16
Nipples D3,5
AP8108672
$6,30 Unit Price incl. VAT
17
Rear wheel flap
AP8109004
Not Available
18
Missing description
AP
Not Available
19
Missing description
AP
Not Available
20
Oil pipe screw
AP8113003
$3,65 Unit Price incl. VAT
21
Washer 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
22
Rear brake hose
AP8113442
Not Available
22
Rear brake hose
AP8113494
Not Available
23
Rear master cylinder
AP8113502
Not Available
23
Rear master cylinder
AP8113324
Not Available
24
Rear master cyl.rod
AP8221074
$6,15 Unit Price incl. VAT
24
Master cylinder rod
AP8121842
$5,38 Unit Price incl. VAT
25
Wheel spindle nut M16X1,5
AP8150375
Not Available
26
Rear brake pump union
AP8213057
$6,80 Unit Price incl. VAT
27
Rubber bellows
AP8113288
$8,06 Unit Price incl. VAT
28
Air bleed valve
AP8113549
$32,28 Unit Price incl. VAT
29
RH ball joint M6
AP8210007
$5,13 Unit Price incl. VAT
30
Brake oil tank complete
AP8113241
Not Available
32
Rear brake lever
AP8135707
Not Available
33
Wheel pin washer
AP8125617
Not Available
34
O-ring 3056
AP8120196
Not Available
35
Rear brake caliper prot.
AP8138410
Not Available
35
Rear brake caliper prot.
AP8138095
Not Available
35
Rear brake caliper prot.
AP8131236
Not Available
36
Coil pull spring *
AP8121808
$7,23 Unit Price incl. VAT
37
Chain
AP8107109
Not Available
38
Brake hanger plate
AP8134430
Not Available
38
Brake hanger plate
AP8134150
Not Available
39
Pump cover
AP8138411
Not Available
39
Pump cover, black
AP8131438
Not Available
39
Pump cover, grey
AP8138123
Not Available
40
Bottom disk cover, grey
AP8131228
Not Available
41
Oil seal 30x40x7
AP8125462
$5,38 Unit Price incl. VAT
42
Rear brake caliper
AP8113496
Not Available
42
Rear brake caliper
AP8113425
Not Available
43
Bleed valve cap
AP8113070
$10,32 Unit Price incl. VAT
44
Oil seal 30x40x7
AP8125462
$5,38 Unit Price incl. VAT
45
Pads pair
AP8113595
Not Available
46
T bush
AP8121811
$3,38 Unit Price incl. VAT

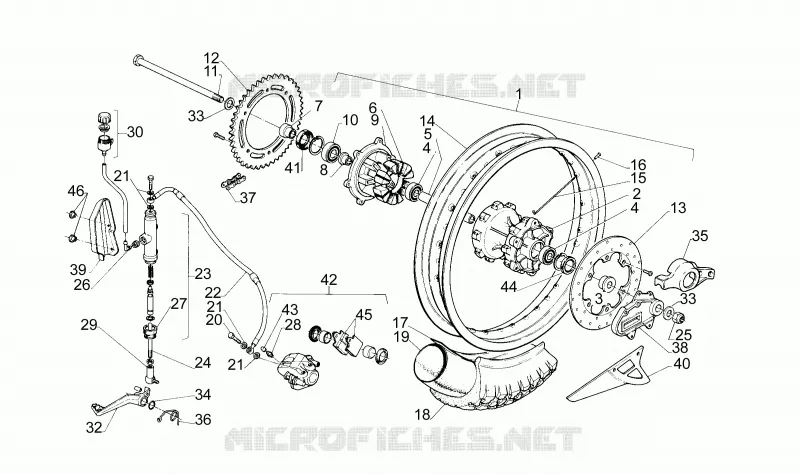

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.
