1
Engine displacement
650
2
Model
PEGASO
3
Year
2005
4
Trim
Pegaso Strada - Trail IE
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Drive shaft
by
Steering-Strada Version
Air box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
1
Air box cpl.
AP8184425
Not Available
1
Air box cpl.
AP8178814
Not Available
2
Intake hose
AP8144690
Not Available
3
Throttle body hose
AP8144689
Not Available
4
Filter cover
AP8178818
Not Available
5
Filter support
AP8178817
Not Available
6
Air filter
AP8104847
$19,85 Unit Price incl. VAT
7
Vis taraud 5x14
AP8150509
$0,51 Unit Price incl. VAT
8
Box
AP8178820
Not Available
9
Collier clic
AP8201169
$5,38 Unit Price incl. VAT
10
0706599
AP8520153
$66,99 Unit Price incl. VAT
11
T air sensor rubber
AP8144734
Not Available
12
Filter cover Blow-by
AP8178819
Not Available
13
Filter Blow-by
AP8104848
Not Available
14
Vis taraud pour plast. Inox
AP8150420
$3,65 Unit Price incl. VAT
15
Hose clamp
AP8104898
Not Available
16
Hose collar
AP8161053
Not Available
17
Joint
AP8120615
$5,73 Unit Price incl. VAT
18
Capuchon
AP8161054
$1,10 Unit Price incl. VAT
19
Collier serr. Tube
AP8102520
$0,26 Unit Price incl. VAT
20
Blow-by gasket
AP8144746
Not Available
21
screw 6 X 30
AP8152484
Not Available
22
"Douille en ""T"" *"
AP8221023
$0,93 Unit Price incl. VAT
23
Caoutchouc
AP8120030
$0,85 Unit Price incl. VAT
24
Vis taraud pour plast. Inox
AP8150413
$0,08 Unit Price incl. VAT
25
Collier
AP8101890
$3,65 Unit Price incl. VAT

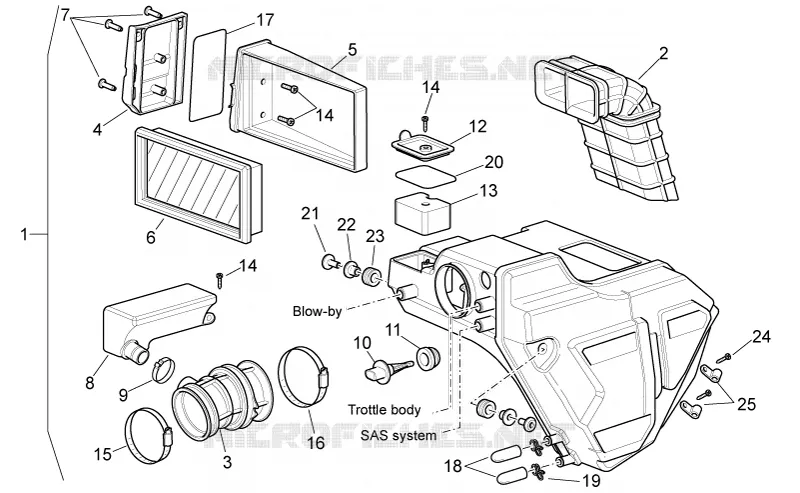

Find the detailed Air box APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
